CORDSTRAP LASHING
Cordstrap lashing, known as Cordlash®, is the most effective way to secure cargo for international shipping wherever it may be, on any transport unit – containers, flat racks, railcars or ships.
Cordstrap’s polyester one-way lashings have many advantages over conventional securing products such as steel straps, chains or wood blocking and bracing. Cordlash® eliminates incidents and damage to your cargo.
Strong, reliable and safe, Cordlash® complies fully with the latest rules and regulations. Ensuring that your responsibilities as a shipper are met and that your cargo passes through controls in the logistics chain quickly and without any hold up. Arriving at its destination safely and in perfect condition.
OPTIMAL SECURITY
Made of high tenacity polyester yarn to ensure maximum strength, Cordlash® has many advantages over conventional products. It ensures that your cargo arrives at its destination in the same condition as when dispatched.
FULLY CERTIFIED
The quality and performance of our lashing is undisputed as it complies with the latest national and global regulations. It is GL certified, AAR approved and CTU Code compliant.
SAFE
Cordstrap’s woven lashing solutions are non-abrasive and safe for both operator and cargo. Optimized lashing and buckle combinations maintain securing function for dynamic and static loads during the most severe transport conditions.
EXPERT SUPPORT
Cordstrap Lashing is fully supported by training and implementation from local cargo securing experts enabling efficiency, standardization and consistency in how your cargo is secured.
CORDSTRAP LASHING SOLUTIONS SPECIFICATIONS
Cordstrap Woven Lashing & Buckle
| Strap Type | Buckle Type | Suitable Tensioner |
|---|---|---|
| Cordstrap Woven 105 – CW105 – Width : 32 mm / 1,1/4″ – System Strength : 4000 daN – 8800 lbf – Length : 250 meter / Roll | Cordstrap High Dynamic Buckle – HDB10N – Width : 32 mm / 1,1/4″ – Package : 50 pcs / Box | Tensioner : CT 40 (Manual) CBT 35 (Battery) CT 35 PN (Pneumatic) |
| Cordstrap Woven 200 – CW200 – Width : 40 mm // 1,5/8″ – System Strength : 8500 daN – 18700 lbf – Length : 200 meter / Roll | Cordstrap High Dynamic Buckle – HDB12N – Width : 40 mm // 1,5/8″ – Package : 30 pcs / Box | Tensioner : CRT 50 (Manual) CT 40 PN (Pneumatic) |
| Cordstrap Woven 750 – CW750 – Width : 50 mm // 2″ – System Strength : 10000 daN – 22000 lbf – Length : 150 meter / Roll | Cordstrap Dynablock 15 – DLB15 – Width : 50 mm // 2″ – Package : 20 pcs / Box | Tensioner : CRT 50 (Manual) CT 40 PN (Pneumatic) |
| Cordstrap Woven 1500 – CW1500 – Width : 60 mm // 2,3/8″ – System Strength : 20000 daN – 44000 lbf – Length : 100 meter / Roll | Cordstrap Dynablock 20 – DLB20 – Width : 60 mm // 2,3/8″ – Package : 6 pcs / Box | Tensioner : CRT 60 (Manual) CT 60 PN (Pneumatic) |
All Cordstrap Composite and Woven solutions have been witness tested by Germanischer Lloyd
For more information about Cordstrap’s Container Solutions or Dynamic Cargo Solutions get in touch with one of our Cargo Protection Experts
*System breaking strength is the total system strength based on the use with recommended Cordstrap buckle type.
Lashing Applications

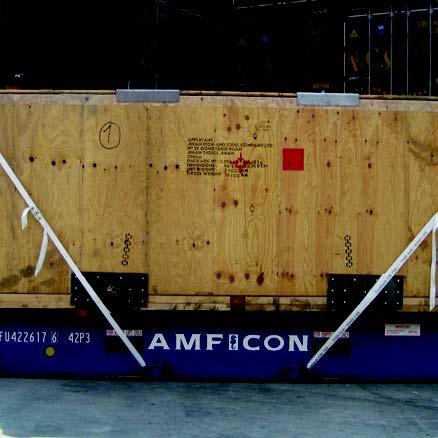

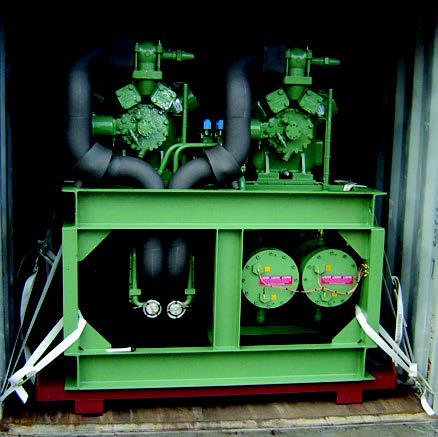

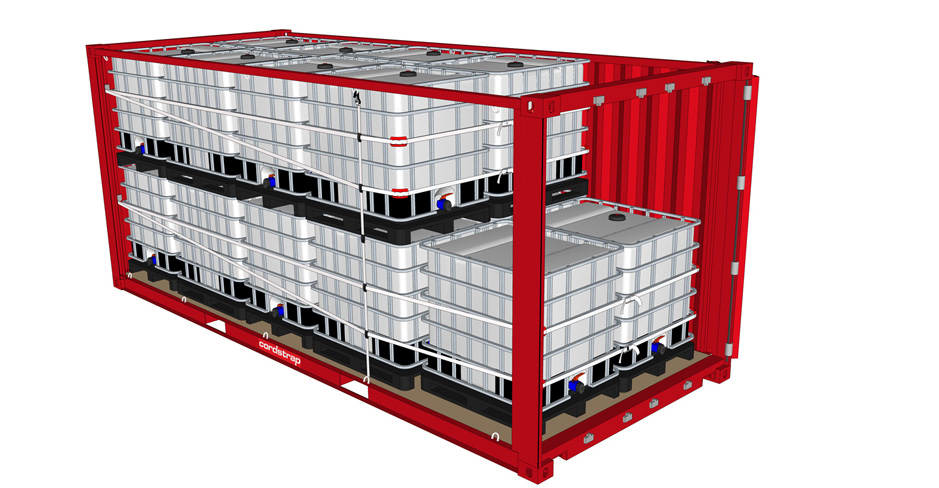

Container cargo
Compliance, Approval & Certification
Fully Certified
CTU Code Compliant
The global code of practice for handling and packing shipping containers.
AAR Verified
Cordstrap partners with The Association of American Railroads when developing and testing cargo securing solutions for usage in railcars in the US.
Germanischer Lloyd certified
Germanischer Lloyd is the world’s leading classification society.
More information and purchasing
To purchase Cordstrap Strapping/Lashing products please contact your account manager or contact us today for expert advice and quotation.
