Arctic Shackle No 856 Bow shackle with safety bolt
Unique benefits with the Arctic Shackle
Adverse weather and rough sea conditions in combination with extremely low temperatures, as often encountered for instance in the North Sea, places tough requirements on the products used. 856 Arctic shackles are specially designed for these conditions. The Arctic Shackle is type approved to DNV 2.7-1 Offshore containers and meets the impact requirements of 42 J at – 40 degrees 2C.
The Arctic Shackle is a grade 8 shackle with all parts hot-dip galvanized, including the safety bolt, and has the characteristic brown color marking.
Standard : DNV 2.7-1, US Federal Spec. RR.C-271 and EN-13889
Material : Special alloy steel, Quenched & Tempered, Grade 8
Finish : All parts hot-dip galvanized+ brown color marking

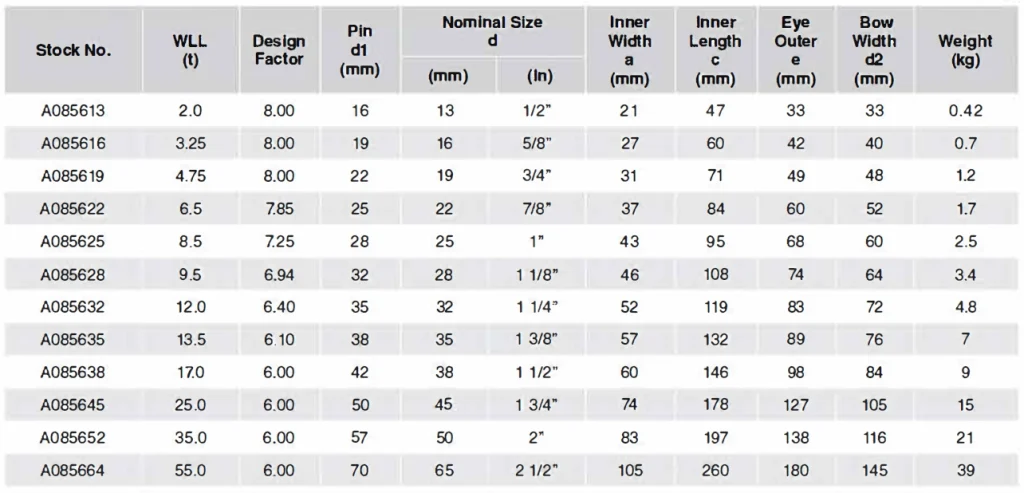

Design Factor : As specified in the table below
Documentation : Test certificate and traceable raw material I inspection certificate acc. EN 10204 – 3.1.
DNVGL-ST-E271-2.7-1 and E273-2.7-3 Type Approval Certification.
Temperature : – 40°C to 200°c
Split pin included
