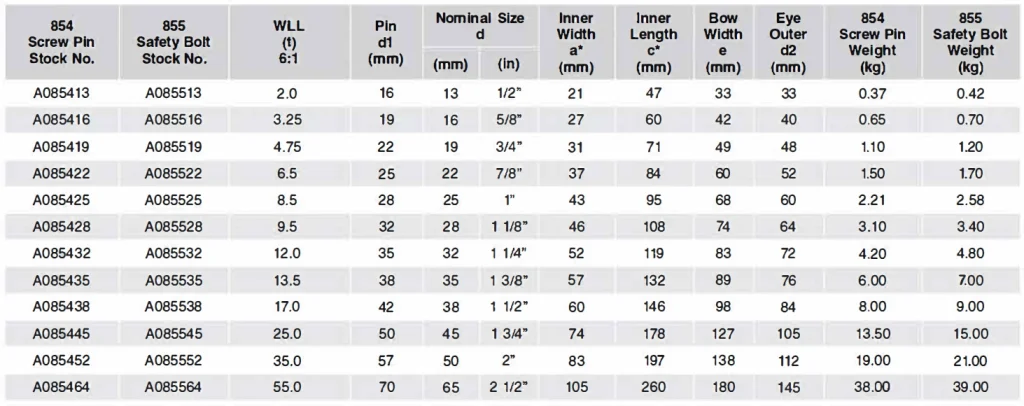

Bow Shackle No 854 and No 855
Standard : DNV 2.7-1 Type Approved, EN 13889 and US Federal Spec. RR-C-271
Material : High tensile carbon steel, Qu enched & Tempered, Grade 6
Finish : All parts hot-dip galvanized, brown painted bolts on top of galvanized.
Design Factor : 6:1
Documentation : Test certificate and traceable raw material/ inspection certificate acc. EN 10204 – 3.1.
DNVGL-ST-E271-2 .7-1 and E273-2.7-3 Type Approval Certification.
Temperature : – 40°c to 200°c
Split pin included
