Machinery and Equipment

Cargo protection for Machinery and Equipment Manufacturers

Moving large and complex plant securely

Cordstrap’s mission is to keep the world’s cargo safe. We provide our customers with innovative solutions and expert advice and deliver the physical insurance global shipping needs – on rail, sea, road and air.

The market for high and heavy equipment is dependent on global growth and business cycles – so as worldwide demand grows, so does the need for manufacturers to securely transport outsize and highly valuable machinery, equipment and parts internationally.

Such a shipping requirement is a complex and costly task, often for example requiring both dedicated facilities and special permits to transport on open roads. There can clearly be very serious consequences if any problems occur.

Manufacturers therefore require shipping partners with a genuinely global reach and resource, who can provide custom-built solutions to their specific cargo securing requirements.

These solutions need to be compliant with all current local and international rules and regulations; and to be supported by a training resource that ensures all personnel involved in the shipping task can operate time and cost effectively – and above all safely. In this way, many of the dangers associated with such journeys can be nullified.

Cordstrap Applications


Cordstrap offer tailor made solutions for manufacturers, providing maximum peace of mind when shipping high and heavy plant globally. With the assurance of full CTU code compliance.

Our products can be applied directly to coated materials without causing damage; and have a higher level of safety than those using traditional materials.

Bundling and Palletizing

Machinery manufacturers often have a need to transport highly irregular and heavy cargo such as tanks, production equipment or pumps and valves. Cordstrap provide expert advice on the shipping of such cargo.

Cordstrap Strapping Solutions
Cordstrap’s polyester composite strapping solutions provide a high quality, strong solution to securing products for steel and metal manufacturers.
Our composite strap, together with a high quality steel buckle, provides optimal strength in all securing applications. They are easy to use and can be consistently applied with our high quality, low maintenance tooling range.

The Cordstrap Battery Operated Tensioner is specifically designed for use with our heavy-duty polyester strapping.
Ergonomically designed to be easy to handle, powerful and reliable, it allows customers to experience all the benefits of our polyester strapping with the latest battery powered technology.

Made of non-abrasive material, Cordstrap’s composite strapping is easy to use, will not damage products in transit and is safe to apply and remove.

Benefits of Cordstrap Strapping include:

  • Strong
  • Easy, fast and safe to apply
  • Protective
  • Shock absorbent
  • Possibility of personalization
  • Light weight
  • Portable
  • Weather resistant
  • Rust and rot-proof
  • Certified and approved by Germanischer Lloyd

Flat Rack Securing

Highly valuable cargo such as tanks, production equipment or earth moving equipment can be exposed to extreme external influences, for example g-forces or highly adverse weather conditions, on flat racks.

Traditional polyester securing solutions with standard buckles can lead to a risk of slippage under such influences. Cordstrap’s innovative Dynamic Cargo Securing solutions protect against these and ensure cargo arrives at its destination without damage.

Cordstrap’s Flat Rack Solutions are:

  • Easy, fast and safe to apply
  • Highly shock-absorbent
  • Tension retentive
  • Certified and approved by Germanischer Lloyd
    and IMO
  • Inclusive of onsite staff training

Cordstrap for Industries

Logistic

Steel and Metal Industry

Chemical Industry

Ship Securing

Ship Securing Solutions

Cordstrap’s heavy-duty polyester lashings facilitate dynamic cargo securing solutions that will not damage cargo during the voyage and are easily applied in confined spaces such as a ship’s hull.

Cordstrap’s Ship Securing Solutions are:

  • Easy, fast and safe to apply
  • Highly shock absorbent
  • Protective
  • Light weight
  • Portable
  • Re-tensionable
  • Certified and approved by organizations including Germanischer Lloyd and IMO

Applications

Flat Rack Securing

Containerization

Bundling and Palletizing

Cargo securing methods

Flat Rack Securing

Flat Rack Solution

Valuable cargo can be exposed to extreme external influences on flat racks. Cordstrap’s dynamic cargo securing solutions protect against these and ensure cargo arrives at its destination without damage.

Cordstrap’s Flat Rack Securing Solutions are:

  • Easy, fast and safe to apply
  • Highly shock-absorbent
  • Tension retentive
  • Certified and approved by Germanischer Lloyd
  • Inclusive of onsite staff training

Applications

Containerization

Bundling and Palletizing

Cargo securing methods

Ship Securing

Bundling and Palletizing

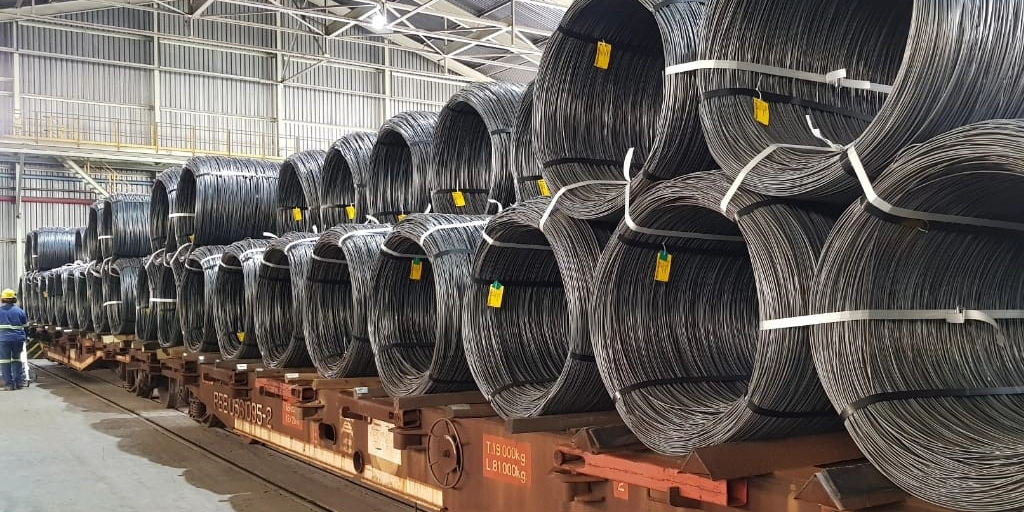

Palletizing, Unitizing and Bundling

Cordstrap’s palletizing, unitizing and bundling solutions have a high level of retained tension that ensures cargo keep their original form; making them suitable for securing any type, size or weight of product. These solutions allow products to be picked up and also stacked. This combination of solutions can transform cargo, even if of irregular shape, into transportable units that can be shipped worldwide without damage.

Protecting cargo across all modalities

Whether shipping on flat rack, ship or rail, Cordstrap’s polyester composite Strapping and Buckle solutions provide a high quality, strong solution to securing products of all shapes and sizes, however heavy, fragile or expensive they may be.

Tailored solutions for our customers

Our cargo protection experts have helped customers with their skill and technical knowledge to engineer out risk and ensure the safest, most effective, and compliant solution when transporting bundled, unitized and pallatized cargo.

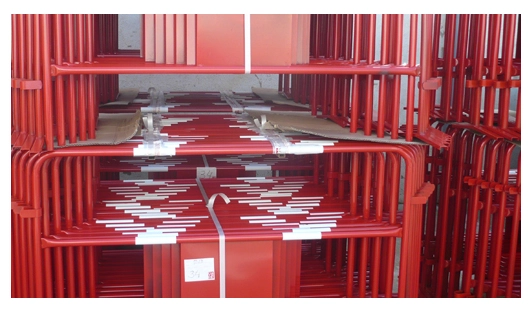

Steel and Metal

Cordstrap solution:
CC50 Composite Strapping
CB5 Buckle
CT20 Manual Strapping Tensioner

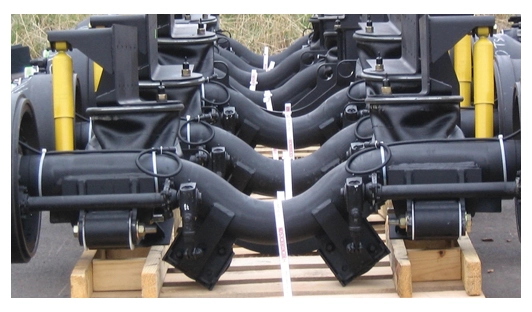

Automotive

Cordstrap solution:
CC50 Composite Strapping
CB5 Buckle
CT20 Manual Strapping Tensioner

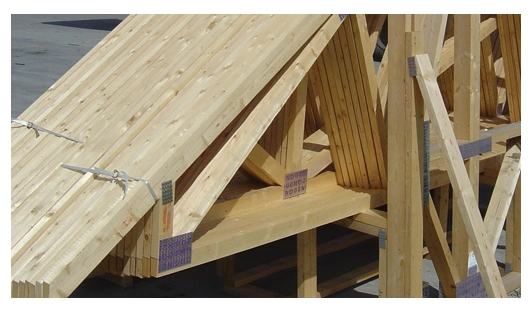

Construction

Cordstrap solution:
CC50 Composite Strapping
CB5 Buckle
CT20 Manual Strapping Tensioner

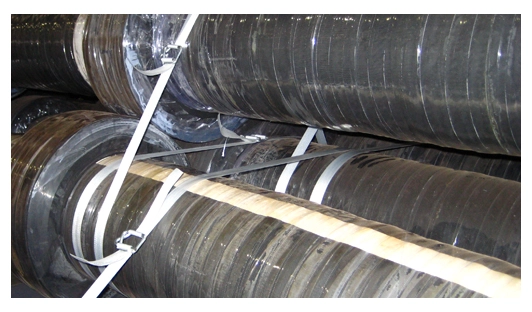

Machinery and Equipment

Cordstrap solution:
CC50 Composite Strapping
CB5 Buckle
CT20 Manual Strapping Tensioner

Benefits of our Pallatizing, Unitizing and Bundling Securing Solutions

Cordstrap’s strapping and buckle solutions provide a high quality, strong solution to securing products of all shapes and sizes, however heavy, fragile or expensive they may be.

  • Easy, fast and safe to apply
  • Light weight
  • Re-tensionable
  • Certified and approved by Germanischer Lloyd
  • Inclusive of onsite staff training

Applications

Ship Securing

Containerization

Cargo securing methods

Flat Rack Securing

Containerization

Containerization Solutions

Cordstrap make containerization as easy, fast and cost effective as possible.
The composite lashing solutions and dunnage bags that Cordstrap have developed, are specifically designed to prevent the movement of cargo in containers.

Cordstrap’s Containerization Solutions are:

  • Time efficient
  • Protective
  • Light weight
  • Portable
  • Certified and approved by organizations including Germanischer Lloyd and AAR
  • Inclusive of onsite staff training

Compliant cargo securing solutions

Every transport method and region has its own rules and regulations. When shipping a container from its point of origin to its destination, it will fall under different rules and regulations while in transit. For containerized goods, Cordstrap container lashing solutions comply with the CTU-Code, IMDG and AAR guidelines, which are key to ensuring safe transport.

A team of Cordstrap experts is ready to help packers and shippers with all necessary knowledge and skills to safely secure cargo in a container, ensuring compliance with all rules and regulations – locally and globally.

Applications

Ship Securing

Flat Rack Securing

Bundling and Palletizing

Cargo securing methods

Cordstrap Lashing

CORDSTRAP LASHING

Cordstrap lashing, known as Cordlash®, is the most effective way to secure cargo for international shipping wherever it may be, on any transport unit – containers, flat racks, railcars or ships.

Cordstrap’s polyester one-way lashings have many advantages over conventional securing products such as steel straps, chains or wood blocking and bracing. Cordlash® eliminates incidents and damage to your cargo.

Strong, reliable and safe, Cordlash® complies fully with the latest rules and regulations. Ensuring that your responsibilities as a shipper are met and that your cargo passes through controls in the logistics chain quickly and without any hold up. Arriving at its destination safely and in perfect condition.

OPTIMAL SECURITY

Made of high tenacity polyester yarn to ensure maximum strength, Cordlash® has many advantages over conventional products. It ensures that your cargo arrives at its destination in the same condition as when dispatched.

FULLY CERTIFIED

The quality and performance of our lashing is undisputed as it complies with the latest national and global regulations. It is GL certified, AAR approved and CTU Code compliant.

SAFE

Cordstrap’s woven lashing solutions are non-abrasive and safe for both operator and cargo. Optimized lashing and buckle combinations maintain securing function for dynamic and static loads during the most severe transport conditions.

EXPERT SUPPORT

Cordstrap Lashing is fully supported by training and implementation from local cargo securing experts enabling efficiency, standardization and consistency in how your cargo is secured.

CORDSTRAP LASHING SOLUTIONS SPECIFICATIONS

Cordstrap Woven Lashing & Buckle

Cordstrap Woven 105 – CW105
– Width : 32 mm / 1,1/4″
– System Strength : 4000 daN – 8800 lbf
– Length : 250 meter / Roll		Cordstrap High Dynamic Buckle – HDB10N
– Width : 32 mm / 1,1/4″
– Package : 50 pcs / Box

Tensioner :
CT 40 (Manual)
CBT 35 (Battery)
CT 35 PN (Pneumatic)
Cordstrap Woven 200 – CW200
– Width : 40 mm // 1,5/8″
– System Strength : 8500 daN – 18700 lbf
– Length : 200 meter / Roll		Cordstrap High Dynamic Buckle – HDB12N
– Width : 40 mm // 1,5/8″
– Package : 30 pcs / Box
Tensioner :
CRT 50 (Manual)
CT 40 PN (Pneumatic)

Cordstrap Woven 750 – CW750
– Width : 50 mm // 2″
– System Strength : 10000 daN – 22000 lbf
– Length : 150 meter / Roll		Cordstrap Dynablock 15 – DLB15
– Width : 50 mm // 2″
– Package : 20 pcs / Box

Tensioner :
CRT 50 (Manual)
CT 40 PN (Pneumatic)

Cordstrap Woven 1500 – CW1500
– Width : 60 mm // 2,3/8″
– System Strength : 20000 daN – 44000 lbf
– Length : 100 meter / Roll		Cordstrap Dynablock 20 – DLB20
– Width : 60 mm // 2,3/8″
– Package : 6 pcs / Box

Tensioner :
CRT 60 (Manual)
CT 60 PN (Pneumatic)

All Cordstrap Composite and Woven solutions have been witness tested by Germanischer Lloyd
For more information about Cordstrap’s Container Solutions or Dynamic Cargo Solutions get in touch with one of our Cargo Protection Experts

*System breaking strength is the total system strength based on the use with recommended Cordstrap buckle type.

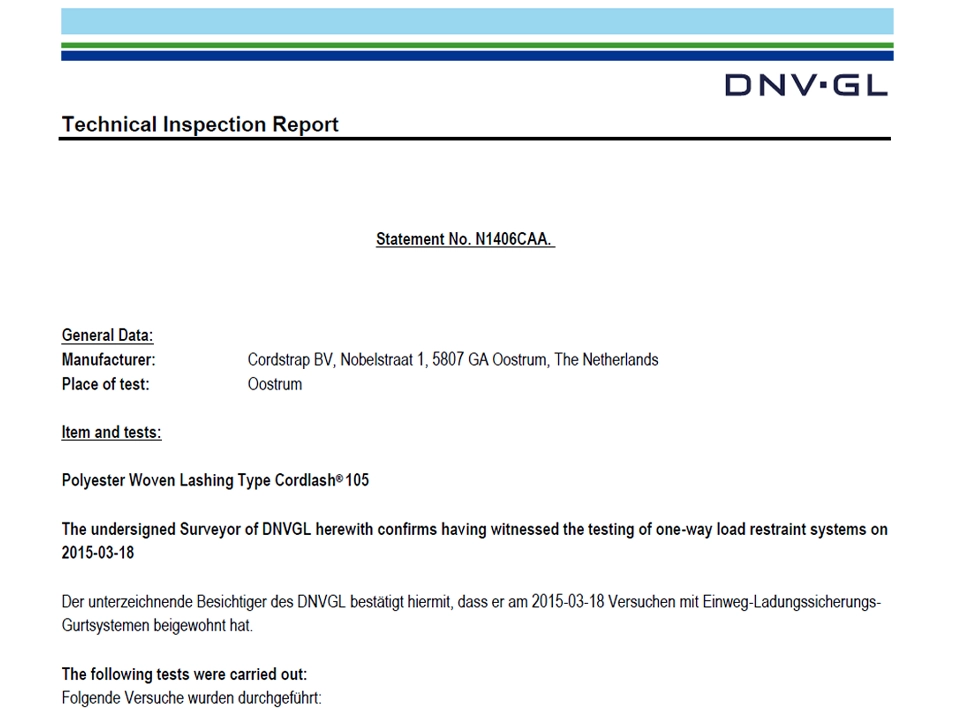

Certificate CW105 – HDB10N

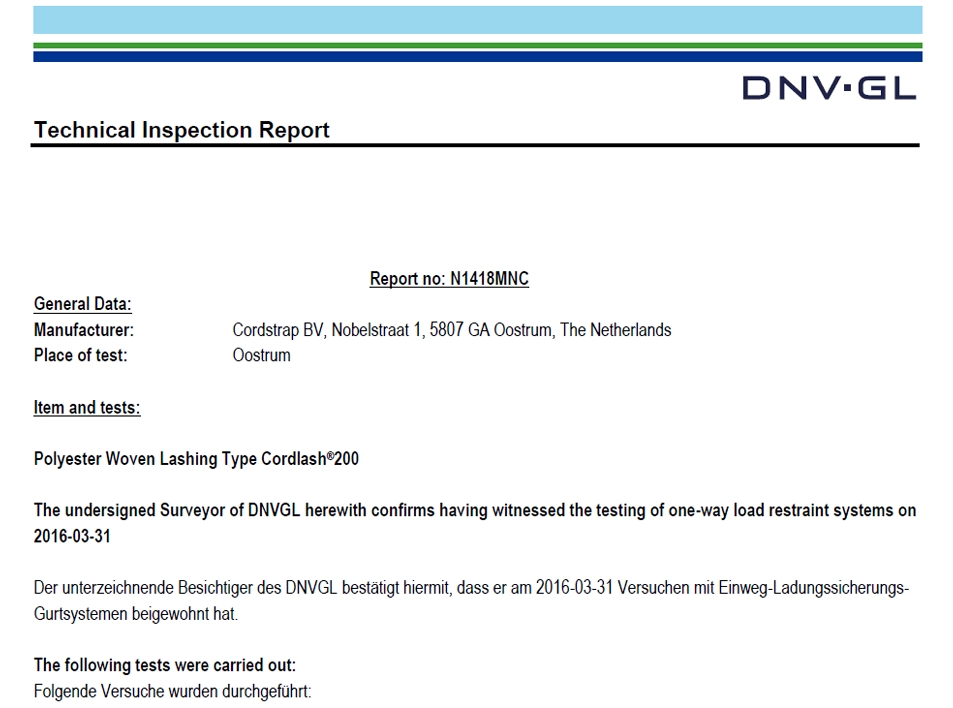

Certificate CW200 – HDB12N

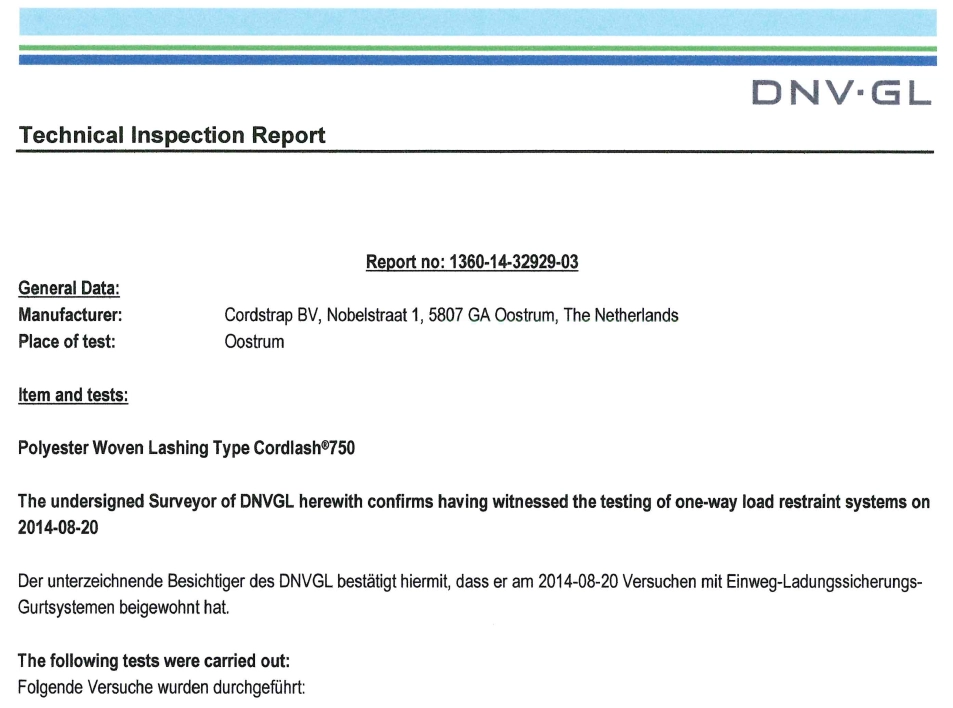

Certificate CW750 – DLB15

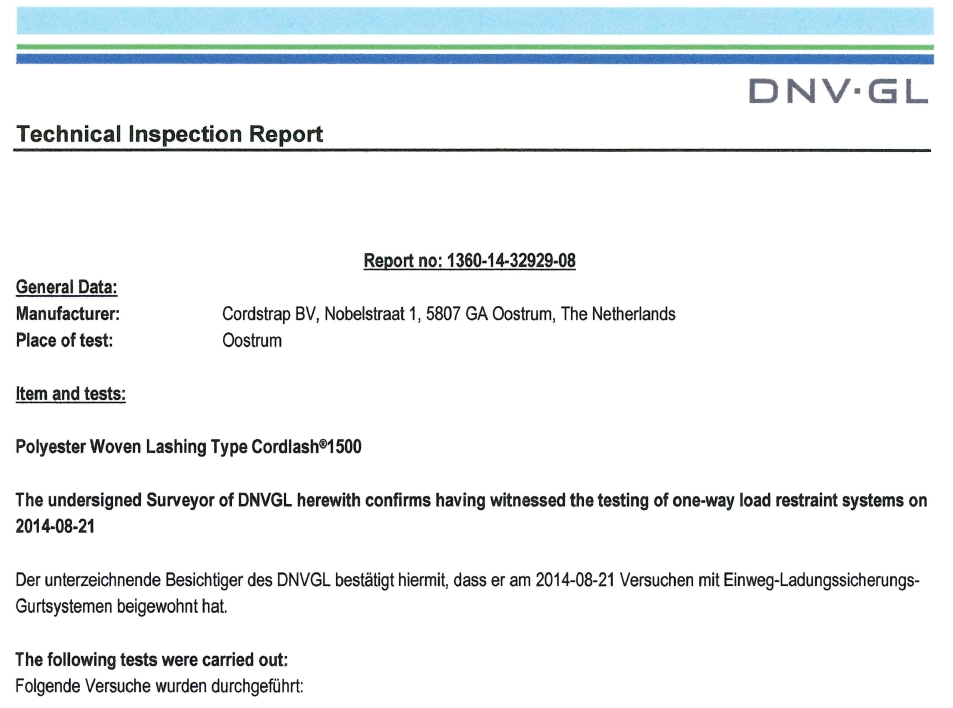

Certificate CW1500 – DLB20

Lashing Applications

Container cargo

Cordstrap CornerLash

Cordstrap AnchorLash

Cordstrap QuickLash

Compliance, Approval & Certification

Fully Certified

CTU Code Compliant

The global code of practice for handling and packing shipping containers.

AAR Verified

Cordstrap partners with The Association of American Railroads when developing and testing cargo securing solutions for usage in railcars in the US.

Germanischer Lloyd certified

Germanischer Lloyd is the world’s leading classification society.

Cordstrap Product

Cordstrap Strapping

Container Cargo Protection

Dunnage Bags

More information and purchasing

To purchase Cordstrap Strapping/Lashing products please contact your account manager or contact us today for expert advice and quotation.

Java, Kalimantan and surrounding areas
Andreas Tri J.
Email : andreastj@galangusaha.com
Phone : +628117770126

Java, Kalimantan and surrounding areas
Jonathan Nugroho
Email : jonathan@galangusaha.com
Phone : +628117750906

Batam and surrounding areas
Septyo Setiawan Junior
Email : tyojunior@galangusaha.com
Phone : +6281365295255

Share this page

Cordstrap Strapping

Cordstrap Composite Strapping

Cordstrap’s GL certified composite polyester strapping provides a high quality, reliable and strong solution to securing products of all shapes and sizes for transportation, however heavy, fragile or expensive they may be.

A combination of application expertise and market leading cargo security knowledge allows Cordstrap’s experts to demonstrate how best to apply our large range of strapping solutions to your specific cargo securing requirements in the most timely and reliable manner.

FEATURES

– High securing strength – up to 2600 daN / 5850 lbf.
– Extremely high strap and buckle joint efficiency.
– Comprehensive range of manual, battery operated and pneumatic tensioners available.
– Wide range of accessories to guarantee the best solution for every application.
– All Cordstrap Composite Strapping solutions are witness tested by Germanischer Lloyd.

STRONG

Cordstrap composite polyester strap, together with a high quality galvanized steel buckle, provides optimal strength in all cargo securing applications and offer excellent performance even under extreme temperatures and circumstances.

RELIABLE

The combination of Cordstrap straps and buckles provides the most consistent and reliable closing method for securing products, providing true peace of mind for sender and receiver.

SAFE

Made of non-abrasive material, composite strapping is safe and easy to use. It will not damage products in transit and is safe to apply and remove.

CORDSTRAP COMPOSITE STRAPPING SOLUTION SPECIFICATIONS

Cordstrap Corded Polyester Strapping – CC50
– Width : 16 mm
– System Strength : 680 daN / 1530 lbf
– Length : 850 meter / Roll		Cordstrap Galvanized Steel Buckle – CB5
– Width : 16 mm
– Package : 1.000 pcs / Box

Manual Tensioner : CT 20



Cordstrap Corded Polyester Strapping – CC60
– Width : 19 mm
– System Strength : 760 daN / 1710 lbf
– Length : 600 meter / Roll		Cordstrap Galvanized Steel Buckle – CB6
– Width : 19 mm
– Package : 500 pcs / Box

Manual Tensioner : CT 20



Cordstrap Corded Polyester Strapping – CC85
– Width : 25 mm
– System Strength : 1250 daN / 2810 lbf
– Length : 500 meter / Roll		Cordstrap Galvanized Steel Buckle – CB8
– Width : 25 mm
– Package : 250 pcs / Box

Manual Tensioner : CT 40
Battery Tensioner : CBT 35


Cordstrap Corded Polyester Strapping – CC105
– Width : 32 mm
– System Strength : 2600 daN / 5850 lbf
– Length : 230 meter / Roll		Cordstrap Galvanized Steel Buckle – CB10
– Width : 32 mm
– Package : 125 pcs / Box

Manual Tensioner : CT 40
Battery Tensioner : CBT 35


All Cordstrap composite polyester solutions have been witness tested by Germanischer Lloyd
Temperature Range Standard, Medium and Heavy Solutions: 5°C – 80°C / 41°F – 176°F
Temperature Range Medium and Heavy UltraFlex (UF) Solutions: -20°C – 30°C / -4°F – 86°F

*Breaking strength is the total system strength based on the use with recommended Cordstrap buckle type.

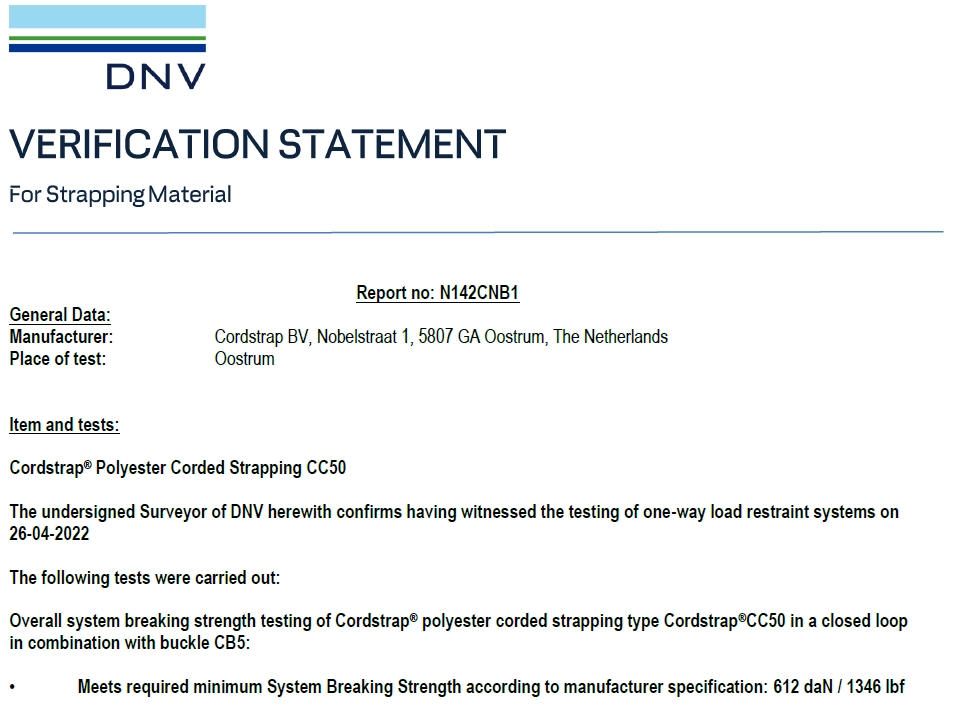

CC50-CB5 – DNV Report

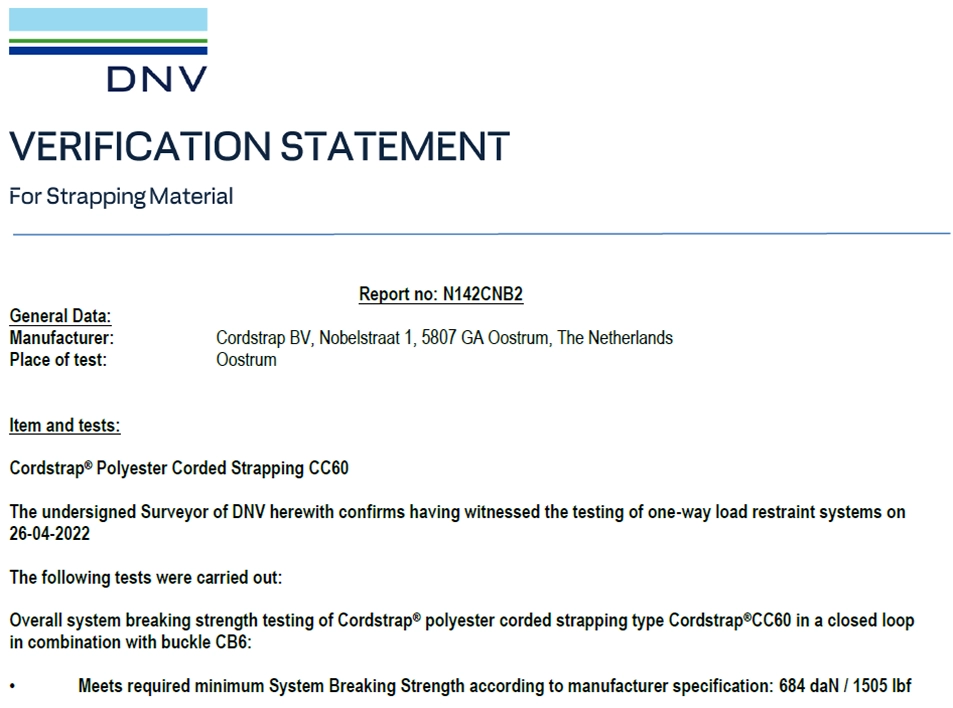

CC60-CB6 – DNV Report

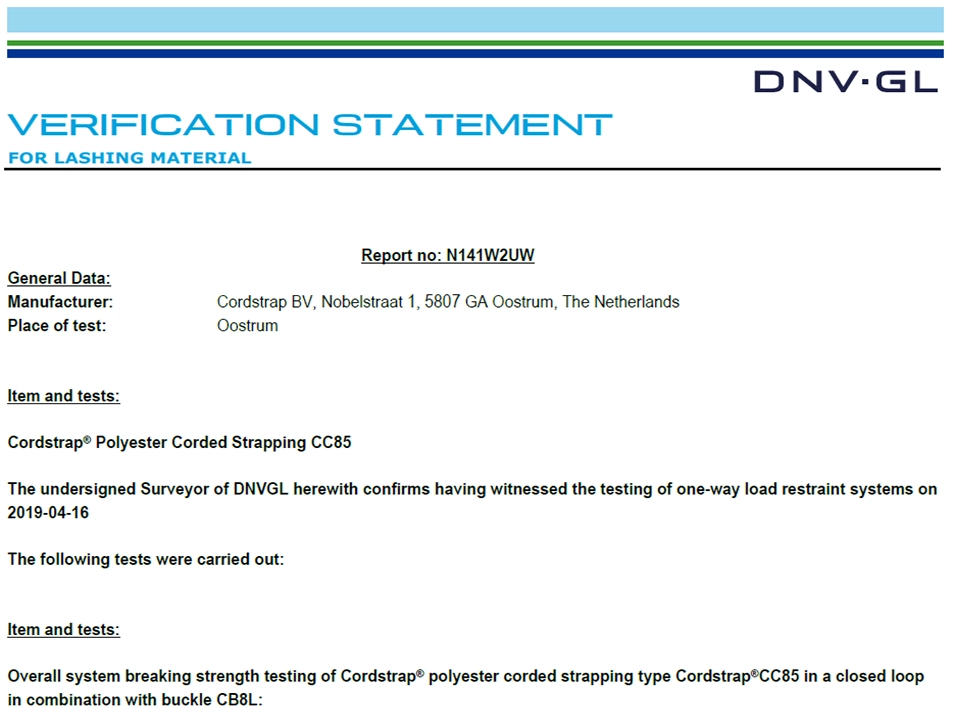

CC85-CB8 – DNV Report

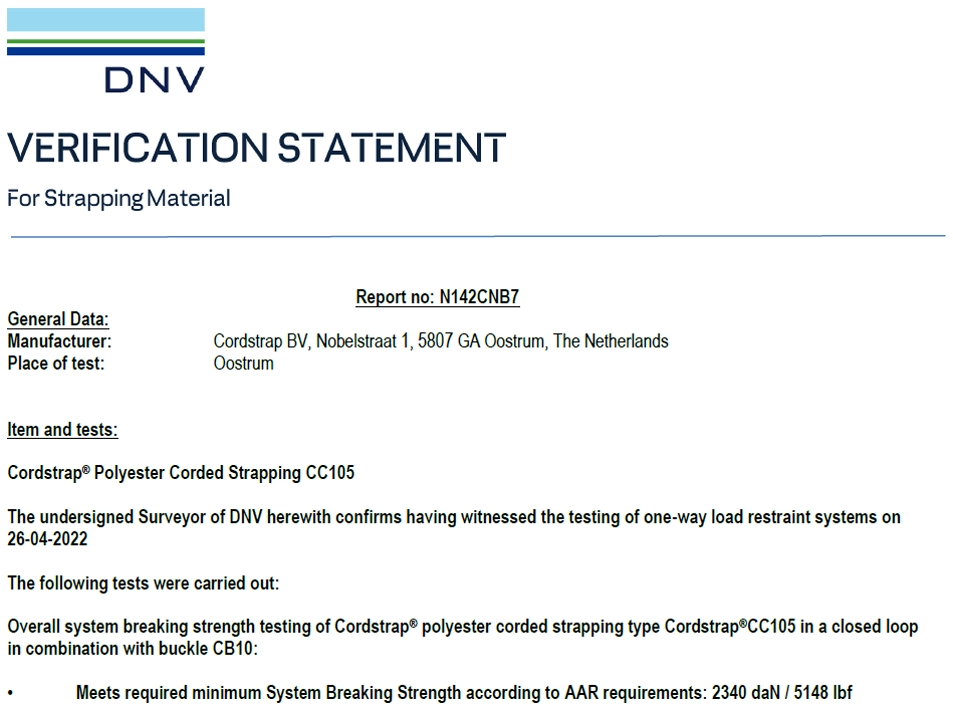

CC105-CB10 – DNV Report

Compliance, Approval & Certification

Cordstrap Product

Container Cargo Protection

Cordstrap Lashing

Dunnage Bags

More information and purchasing

To purchase Cordstrap Strapping/Lashing products please contact your account manager or contact us today for expert advice and quotation.

Java, Kalimantan and surrounding areas
Andreas Tri J.
Email : andreastj@galangusaha.com
Phone : +628117770126

Java, Kalimantan and surrounding areas
Jonathan Nugroho
Email : jonathan@galangusaha.com
Phone : +628117750906

Batam and surrounding areas
Septyo Setiawan Junior
Email : tyojunior@galangusaha.com
Phone : +6281365295255

Share this page

Our Product

Cordstrap Product

Cordstrap Strapping

Cordstrap’s GL certified composite polyester strapping provides a high quality, reliable and strong solution to securing products of all shapes and sizes for transportation, however heavy, fragile or expensive they may be.

Cordstrap Lashing

Cordstrap lashing, known as Cordlash® , is the most effective way to secure cargo for international shipping wherever it may be, on any transport unit – containers, flat racks, railcars or ships.

Container Cargo Protection

Cordstrap container protection solutions combine lashing, including the innovative CornerLash, AnchorLash and QuickLash solutions, and a wide range of Dunnage Bags to keep all cargo types and weights physically secure in the container.

Dunnage Bags

D-Connect dunnage bags are specially designed to secure and stabilize loads of up to 23 tons in containers, closed rail cars, trucks and ships. The D-Connect bag is the most reliable in the market and enables cargo to be secured in an easy and consistent way.

AbraWheels

AbraWheels Fibre Disc are made with high Quality aluminium oxide ideal for grinding of steel, welds, metal finishing and structural fabrication.

Shackle

Crosby Shackles

Bolt type anchor shackles meet the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade A, Class 3, except for those provisions required of the contractor.

Gunnebo Shackles

High quality shackles acc. EN 13889 and US Fed. Spec RR-C. 271 (Grade A and Grade B)
