Cordstrap composite polyester strap, together with a high quality galvanized steel buckle, provides optimal strength in all cargo securing applications and offer excellent performance even under extreme temperatures and circumstances.
Composite Strapping
Known as ‘synthetic steel’, Cordstrap composite (CC) strapping is the latest development in strapping technology. Manufactured from high tenacity polyester yarns embedded in a polymer coating, CC strapping is available in a wide variety of widths and strengths.
Strength of up to 1800 daN / 4050 lbf
Non abrasive – will not damage products in transit
Re-tensionable
Germanischer Lloyd certified
Cordstrap Strapping Buckles
Cordstrap strapping buckles provide the strongest and most consistent joint in the industry.
Cordstrap’s lashing solutions provide a high quality, strong solution to securing products and can be consistently applied with our high quality, low maintenance tooling range.
Manual Lashing Tensioners
Our manual lashing tools allow tension to be applied to a cargo securing system in an easy, fast and ergonomic manner, with the highest pre-tension in the market.
Our battery lashing tensioners are designed to speed up your cargo loading process for heavy applications by providing optimal pre-set tension for every Cordstrap lashing type. With comparable power to pneumatic tools, they are fast and easy to use, and designed for durability and outdoor use.
Powerful – High tensioning speed powered by an 18V Lithium ion battery with tension force up to 1.600 daN / 3,520 lbf (CBT 40), 2.000 daN / 4,400 lbf (CBT 50)
Light – Both models weigh 6.2 kg / 13.6 lb
Durable – Estimated 100 – 150 cycles per battery
Easy use with push button operation
Patented auto-stop and auto-reverse technology
High tensioning speeds
No air line needed
Pneumatic Tensioners
Pneumatic strapping tools allow an extreme amount of tension to be applied to a strap with minimal effort. The operation starts with the simple push of a button.
AnchorLash® is the versatile solution for light to medium loads. Using the strongest existing anchor points within the container, AnchorLash® can adapt to your specific cargo, whether that’s carton boxes, plastic drums, big bags or other soft packaging, providing cargo protection on any modality or route.
Designed to be quick and easy to apply consistently, with color-coded lashing to easily show the order that the pre-cut lashing should be applied and optional snap hooks to further speed up application. It’s delivered in packaging that contains everything you need to secure one container, minimising preparation time, so one person can secure a container in minutes helping to reduce load times and costs.
At Cordstrap, we are committed to supporting and driving safety in our industry. The AnchorLash® solution provides CTU Code Compliant cargo protection, supporting your responsibilities when shipping nationally or internationally. We know that each customer has specific requirements, and will therefore work closely with you to understand your business needs, and your cargo variables – type, weight, transport mode, route, so that we can calculate and advise on the best securing solution for you.
SAFE & SECURE
High quality lashing solutions secure cargo to prevent movement within the container, protecting both the cargo and ensuring the safety of everyone involved in the supply chain.
TIME & COST EFFICIENT
Designed to be easy and quick to apply consistently, saving time and cost during loading and application.
COMPLIANT
All Cordstrap lashing solutions are CTU Code compliant and have independent witness verification.
CORDSTRAP CORNERLASH® PROTECTS YOUR CARGO, YOUR PEOPLE AND YOUR BRAND.
4 pairs of colour coded horizontal lashings with a stitched loop at the end to attach to the container anchor point, and 4 buckles.
SH (SNAP HOOK)
4 pairs of colour coded horizontal lashings with a snap hook at the end to attach to the container anchor point, and 4 buckles.
AnchorLash® is CTU Code Compliant, certified by MariTerm AB, Eurosafe and DNV-GL witnessed. Your Cordstrap Cargo Securing Expert can advise you on the best solution for your specific requirements. Securing values vary based on cargo type, transport mode and friction factor. For full details of the solution performance, please refer to the commercial specification sheet and MariTerm certificate.
TAILOR THE SOLUTION FOR YOUR SPECIFIC CARGO TYPE
EDGE PROTECTION AND HANG STRAPS KEEP LASHING IN AN OPTIMAL POSITION AND PROTECT PACKAGING.
EdgeBoards (Soft Packaging)FlexBoards (Drums and BigBags)IBC ProtectorHangStrap
ELASTIC WOVEN LASHING FOR FLEXIBLE RETAINING.
Retainer Buckle (Compressible Bulk Loads)
ANCHORLASH® CAN BE USED IN A REEFER CONTAINER WITH A REEFER LASHING POINT
Reefer Lashing Point
USE THE RECOMMENDED TOOLS TO ENABLE EASY, FAST AND CONSISTENT APPLICATION.
These are the recommended tensioners. Other tensioners may also be suitable.
STANDARD LOADING PLANS ARE AVAILABLE FOR DIFFERENT LOAD TYPES. TAILORED LOADING PLANS ARE AVAILABLE ON REQUEST.
The right solution for every containerized load
As cargo protection experts, we understand the operational and logistical challenges businesses face when shipping cargo. We work closely with customers to ensure they have the right solutions, whatever the cargo type, modality or route, tailored to their requirements and priorities.
Take a look at our range of standard loading plans and support tools or get in touch to discover how we can help to optimize your cargo protection operations.

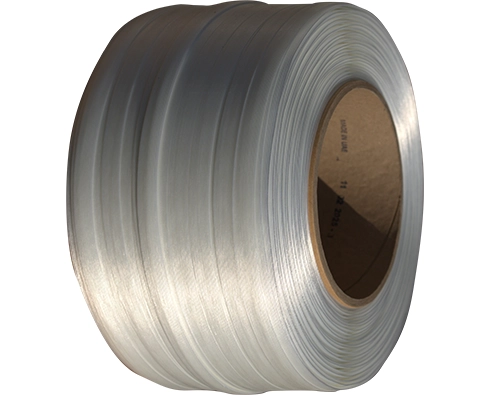

Cordstrap Corded Polyester Strapping – CC50 System Breaking Strength** : 680 daN / 1530 lbf with standard Buckle Width* : 16 mm – 5/8″ Coil length* : 900 M / 2953 FT Packed : 2 Coils per box Weight : 22.6 KG / 49.9 LB per box
*=+/-2%, **=+/-10%
Material : High tenacity polyester filament yarn and Homopolymer Polypropylene

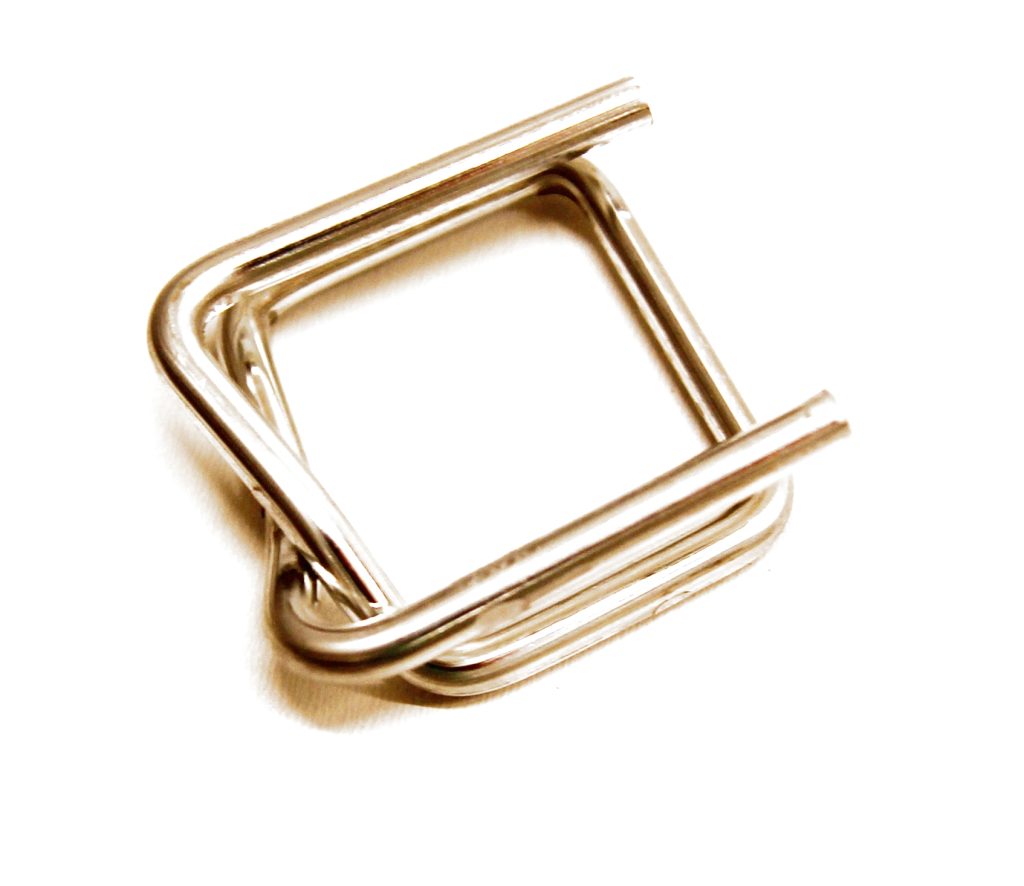

Cordstrap Galvanized Steel Buckle – CB5 Width* : 16 mm – 5/8″ Packed : 1000 pieces per box Weight : 12.79 KG / 28.14 LB per box
*=+/-2%
Material : Galvanized steel wire
CC60 and CB6

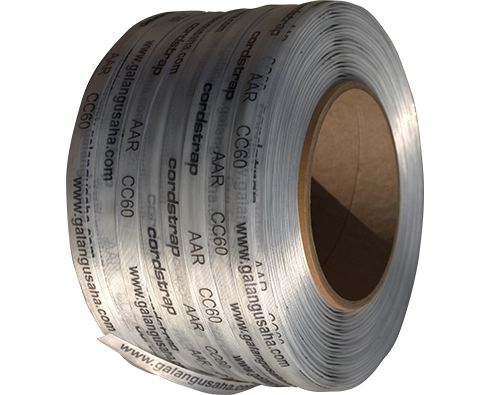

Cordstrap Corded Polyester Strapping – CC60 System Breaking Strength** : 760 daN / 1710 lbf with standard Buckle Width* : 19 mm – 3/4″ Coil length* : 700 M / 2297 FT Packed : 2 Coils per box Weight : 20.8 KG / 45.9 LB per box
*=+/-2%, **=+/-10%
Material : High tenacity polyester filament yarn and Homopolymer Polypropylene
*Breaking strength is the total system strength based on the use with recommended Cordstrap Buckle type
Certification: DNV
Strapping Tools and Accessories
Manual Strapping Tensioners
Our manual strapping tensioners allow tension to be applied to a cargo securing system in an easy, fast and ergonomic manner, with the highest pre-tension in the market.
Applied Pre-tension : 200 – 800 daN / 450 – 1800 lbf Suitable for strap widths : 19 mm – 40 mm / 3/4″ – 1.5/8″ Suitable for strap thickness : 0,6 – 1,5 mm / 1/32″ – 1/16″ Weight : 2,5 kg / 5,5 lbs Product Code : 7502400
Battery Operated Tensioner
Ergonomically designed to be easy to handle, powerful and reliable, the CBT 35 Battery Operated Tensioner combined with Cordstrap composite polyester strapping is the perfect answer to your cargo strapping requirements.
Cordstrap cargo edge protection products protect shipped goods and are an integral part of bundling and palletizing cargo. The right edge protection product depends on variables such as the application and type of polyester strap or lash used.
All Cordstrap composite polyester solutions have been witness tested by Germanischer Lloyd Temperature Range Standard, Medium and Heavy Solutions: 5°C – 80°C / 41°F – 176°F Temperature Range Medium and Heavy UltraFlex (UF) Solutions: -20°C – 30°C / -4°F – 86°F
More information and purchasing
To purchase Cordstrap Strapping/Lashing products please contact your account manager or contact us today for expert advice and quotation.
