Strapping Tensioners

Strapping Tensioners

Cordstrap’s polyester composite strapping and buckle solutions provide a high quality, strong solution to securing products. They are easy to use and can be consistently applied with our high-quality, low-maintenance strapping tensioner tool range.

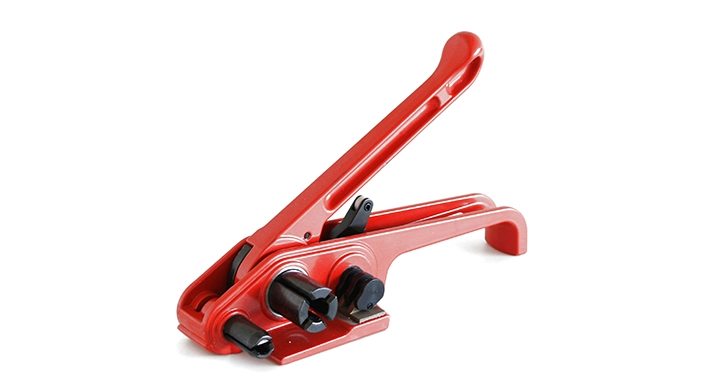

Manual Strapping Tensioners

Our manual strapping tensioners allow tension to be applied to a cargo securing system in an easy, fast and ergonomic manner, with the highest pre-tension in the market.

  • High-quality steel body
  • Hardened steel parts
  • High durability
  • Low initial cost
  • Highest pre-tension in the market
  • Lightweight
  • Easy to use

Cordstrap Strapping

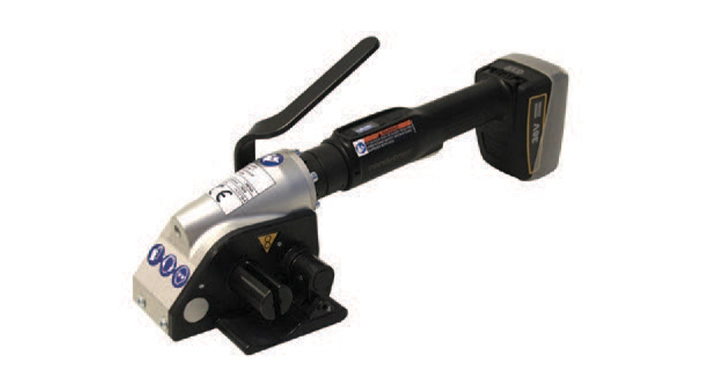

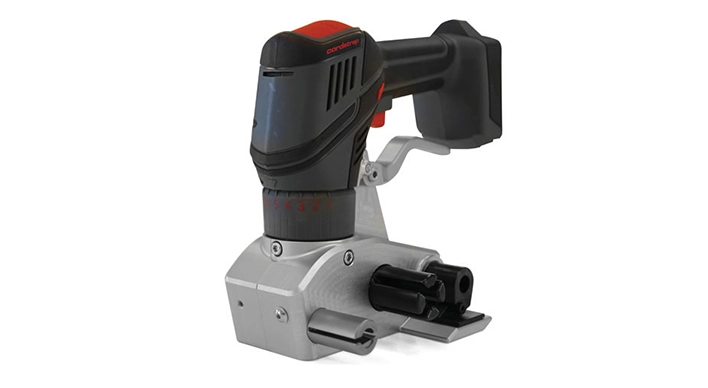

CBT 35 Battery Operated Tensioner

Ergonomically designed to be easy to handle, powerful and reliable, the CBT 35 Battery Operated Tensioner combined with Cordstrap composite polyester strapping is the perfect answer to your cargo strapping requirements.

  • Strong tension force – up to 800 dan
  • Lightweight with ergonomic one-handed design
  • Adjustable tension force and larger power button
  • Powerful
  • Reliable
  • Easy to use

Pneumatic Strap Tensioner

Pneumatic strapping tools allow an extreme amount of tension to be applied to a strap with minimal effort.

  • Push button operation
  • Highest pre-tension in the market
  • Ergonomic design
  • Lightweight
  • Conforms to CE standard

CT35PN

Product code: 7566100

Strapping Solutions Specifications

Logistic

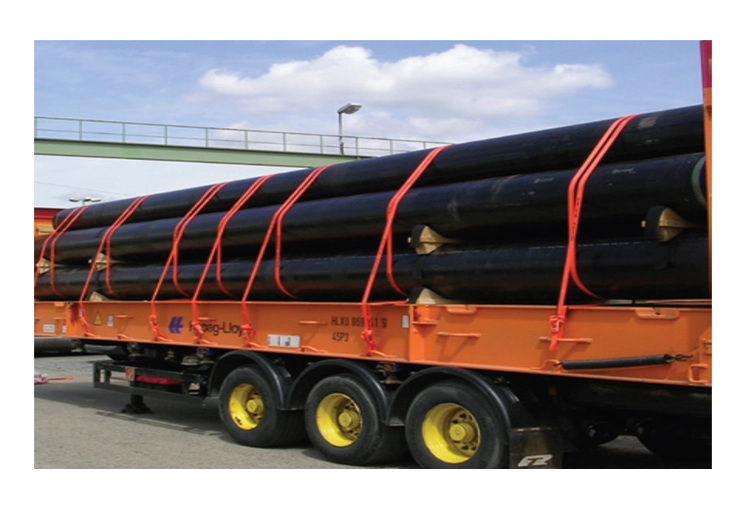

Logistic Solutions

Cordstrap provide the widest and most innovative range of cargo-securing solutions to 3PL businesses and their customers worldwide. With the support of tailored training programs from our Cordstrap Knowledge and Training Centers to ensure a complete understanding of key cargo securing requirements – and the assurance of full CTU code compliance.

Dynamic Cargo Securing

Our Dynamic Cargo Securing solution specifically addresses the behavior of large and heavy machinery in transit. It utilizes Cordstrap’s patented grooved Dynablock buckle and industry leading Cordlash product to create a single flexible solution.

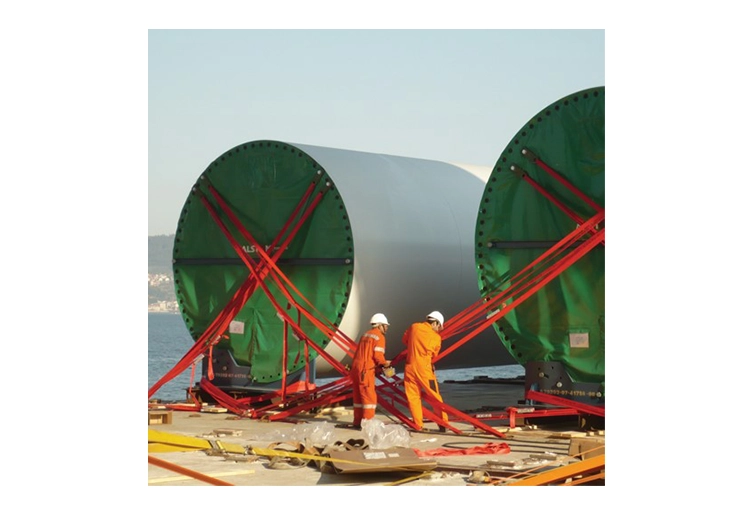

Cordstrap Lashing

Our lashing solutions make the securing process as efficient as possible for logistics businesses, while ensuring safety. Working with our customers, we co-create a solution that considers not only the cargo to be secured, but also the time and staffing resource required for the job. Thus delivering maximum cost efficiency.

Cordstrap Strapping

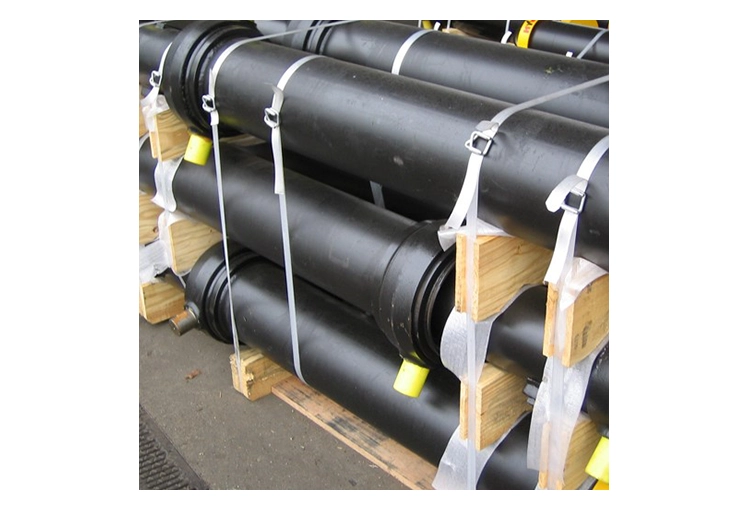

Cordstrap provide our logistics partners with expertise in the securing of non-standard (heavy, fragile, expensive or oddly shaped) products. Our strapping is quick and easy to apply – and also safer and less damaging to cargo than steel alternatives.

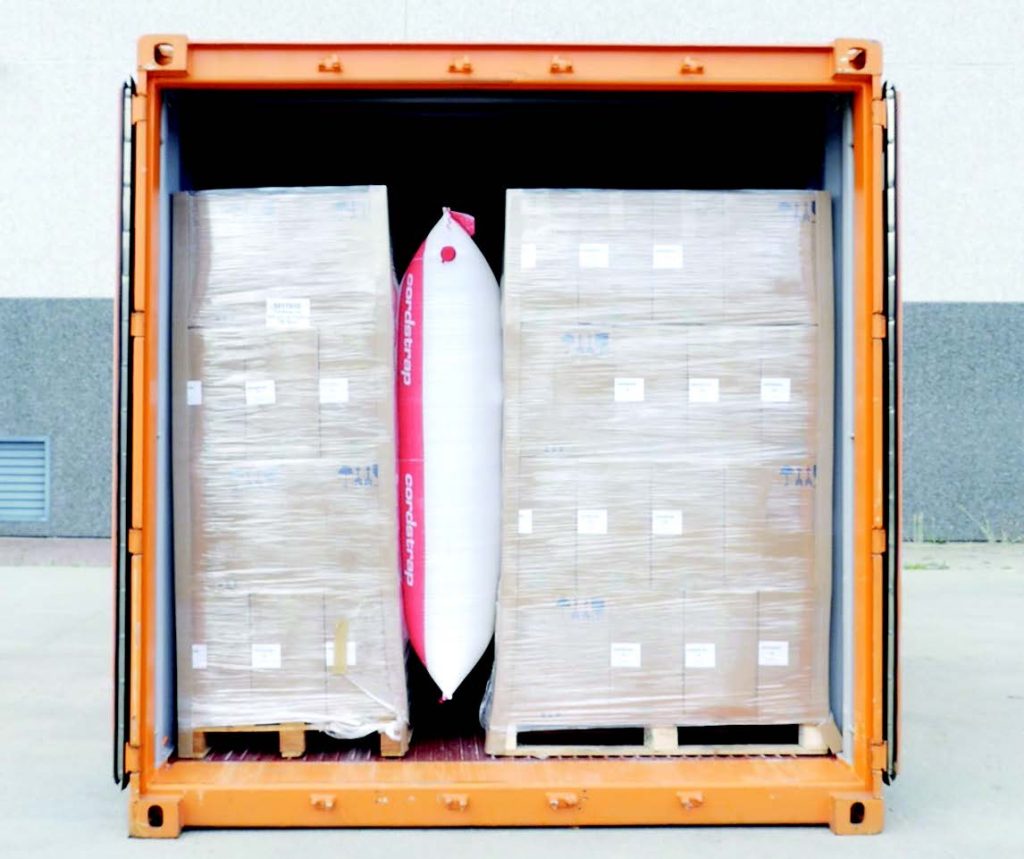

Dunnage Bags

Our wide range of innovative dunnage bag products provides the safest and most effective way to fill empty spaces during shipping. Fast, accurate and easy to apply with our unique precision inflation system, we offer an effective solution for cargo securing in containers.

Cordstrap for Industries

Steel and Metal Industry

Chemical Industry

Machinery and Equipment

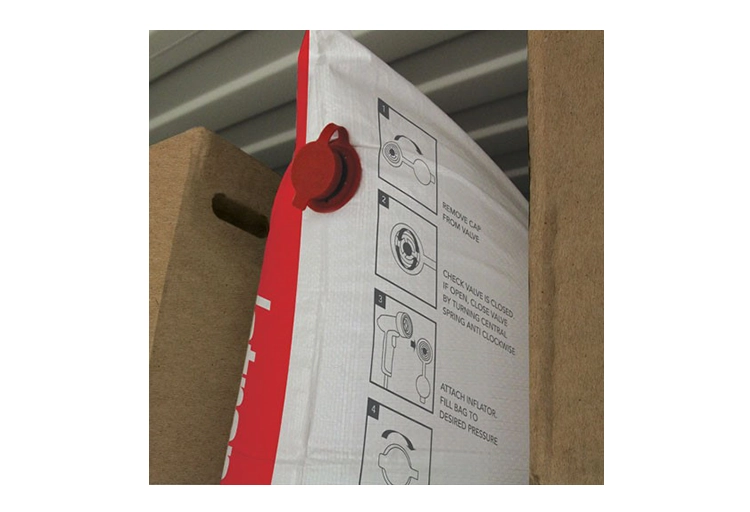

Dunnage Bags

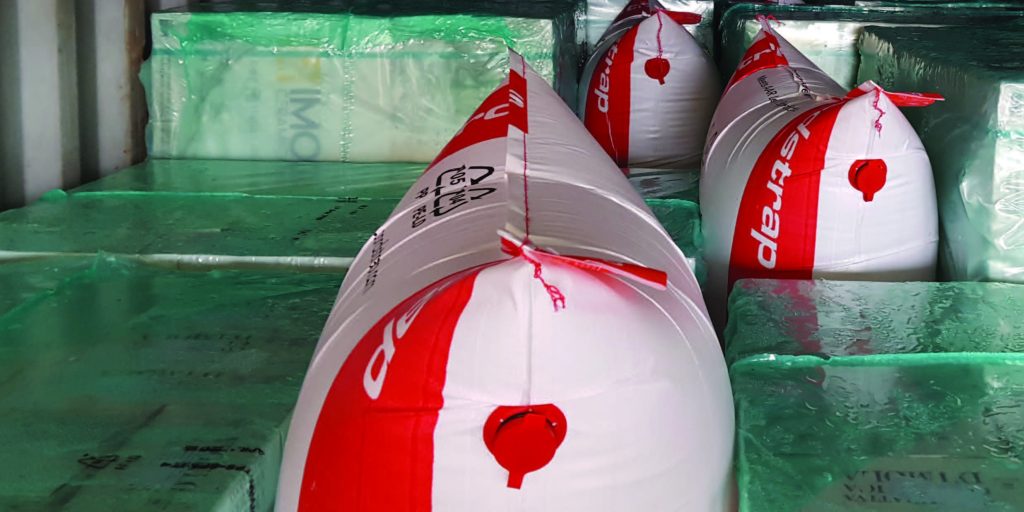

Cordstrap D-Connect

D-Connect dunnage bags are specially designed to secure and stabilize loads of up to 23 tons in containers, closed rail cars, trucks and ships. The D-Connect bag is the most reliable in the market and enables cargo to be secured in an easy and consistent way.

Suitable for many different types of cargo, D-Connect dunnage bag solutions ensure cargo is secured in the safest and most efficient way possible. Direct Connect technology combined with valve positioning on the edge of the bag and solid tooling ensure enhanced safety and speed. A comprehensive tooling range enables inflation of different types and sizes with one single inflator type.

Fully compliant with the latest rules and regulations, D-Connect dunnage bags support your responsibilities as a shipper, ensuring cargo passes through port controls smoothly and arrives at its destination safely and in perfect condition.

OPTIMAL SECURITY

Unique lamination ensures superior performance with regard to puncture and moisture resistance, as well as shock absorbency. Production quality meets stringent AQL standards, making this the most reliable bag on the market.

FAST AND EASY

Inflating a D-Connect dunnage bag takes only 17.5 seconds. This is 20% faster than the current fast inflation solutions on the market.* A slightly rigid structure makes the bag easy to handle and position between the load.

FULLY CERTIFIED

All D-Connect dunnage bags are fully CTU compliant and AAR approved.

EXPERT SUPPORT

Cordstrap D-Connect dunnage bags are fully supported by training and implementation from local Cordstrap cargo securing experts, enabling standardization and consistency.

AAR Verified

Cordstrap Dunnage Air Bags are AAR verified, meaning they can be used to safely transport cargo on American railroads.

Cordstrap Product

Container Cargo Protection

Cordstrap Lashing

Cordstrap Strapping

Cordstrap QuickLash Instructions

Cordstrap QuickLash Instructions

Secure light cargo loads in a container

Specifically designed for securing light loads, when cost is a priority. QuickLash provides a quick and easy solution for securing many types of cargo in a container.

Suitable for securing big bags, soft packaging, carton boxes and drums, QuickLash is a simple solution that ensures cargo is secure in the container and provides fall out protection when the container doors are opened.

Cordstrap QuickLash 105.2

Cordstrap QuickLash 105.2 Standard Crate

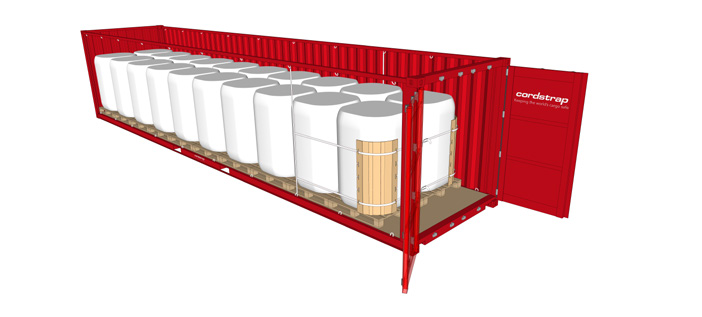

Cordstrap QuickLash 105.2 Large Soft BigBags

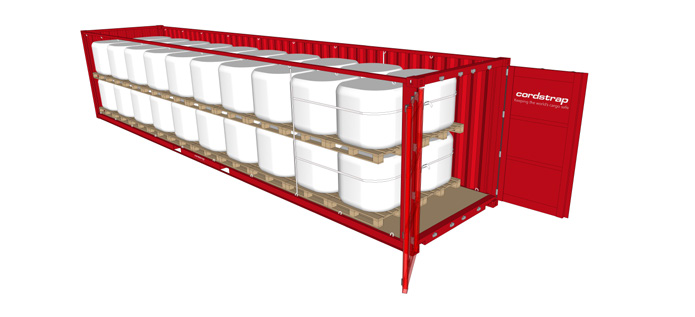

Cordstrap QuickLash 105.2 Small Soft BigBags

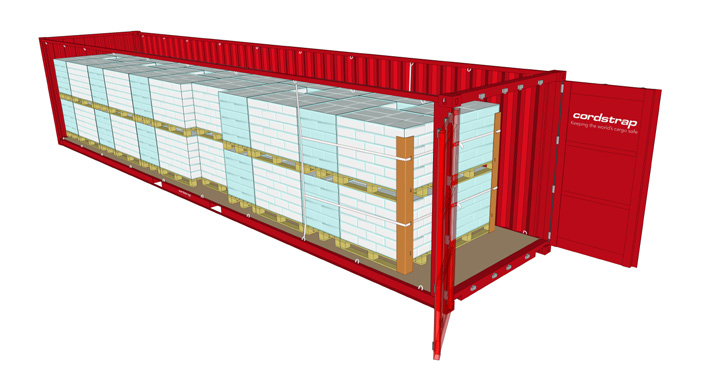

Cordstrap QuickLash 105.2 Soft Packaging

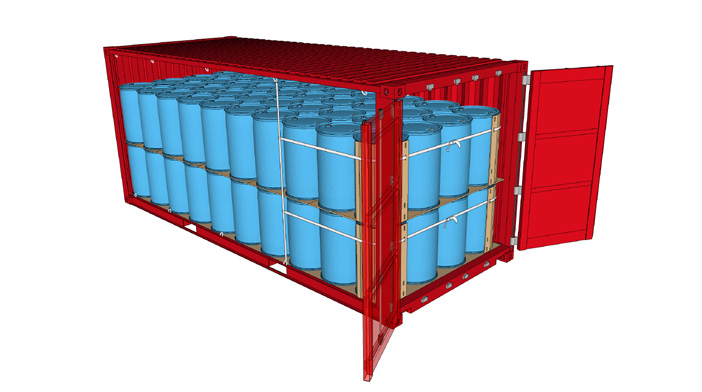

Cordstrap QuickLash 105.2 Plastic Drums

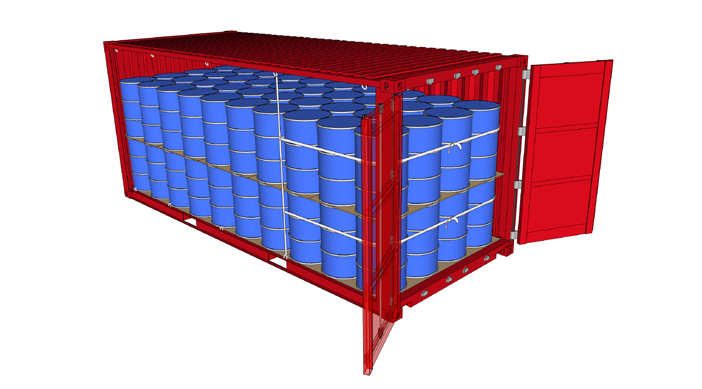

Cordstrap QuickLash 105.2 Steel Drums

Cordstrap QuickLash 105.3

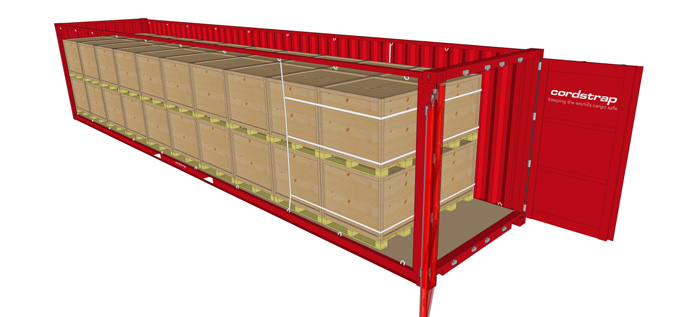

Cordstrap QuickLash 105.3 Standard Crate
Cordstrap QuickLash 105.3 Large Soft BigBags

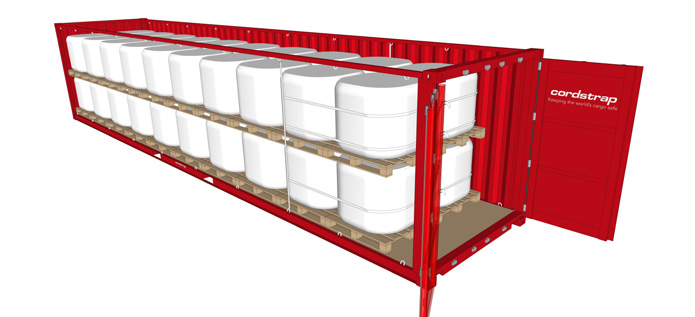

Cordstrap QuickLash 105.3 Small Soft BigBags

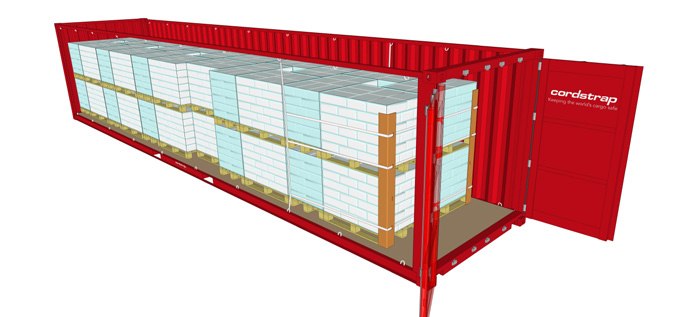

Cordstrap QuickLash 105.3 Soft Packaging
Cordstrap QuickLash 105.3 Plastic Drums
Cordstrap QuickLash 105.3 Steel Drums

Cordstrap QuickLash 105.3 Certificates

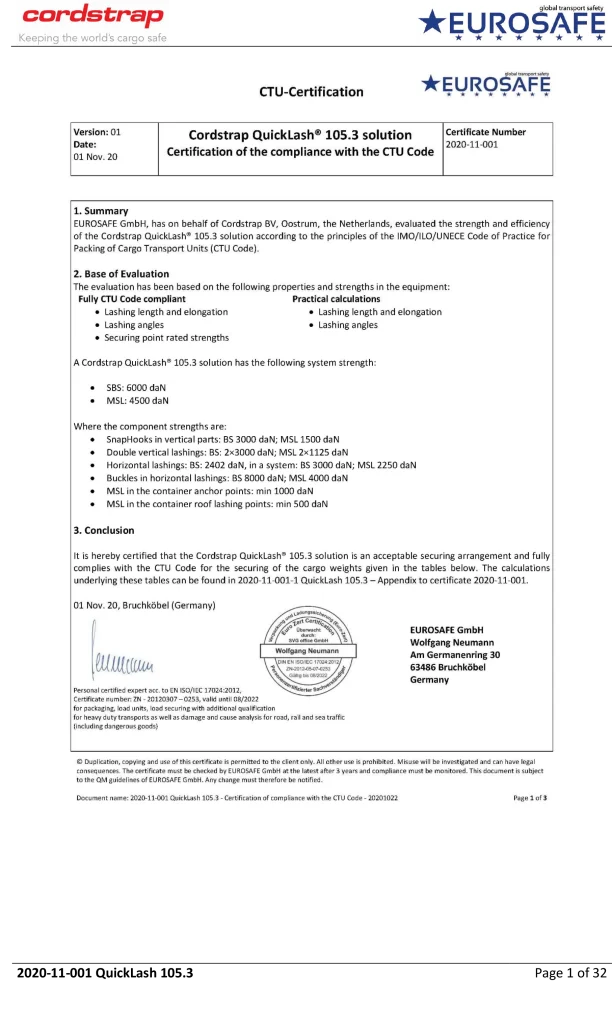

Cordstrap QuickLash 105.3 Eurosafe Certficate
Cordstrap QuickLash 105.3 MariTerm AB Certficate

Cordstrap QuickLash 105.4

Cordstrap QuickLash 105.4 Standard Crate

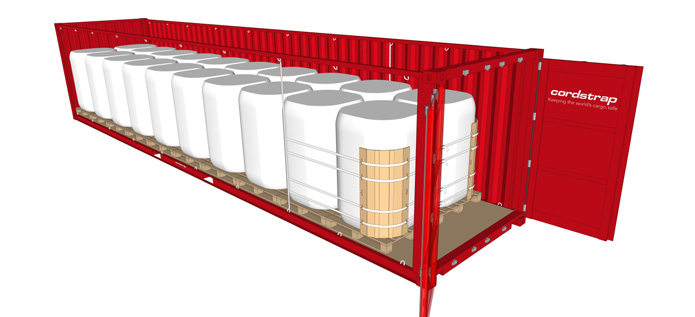

Cordstrap QuickLash 105.4 Large Soft BigBags
Cordstrap QuickLash 105.4 Small Soft BigBags
Cordstrap QuickLash 105.4 Soft Packaging

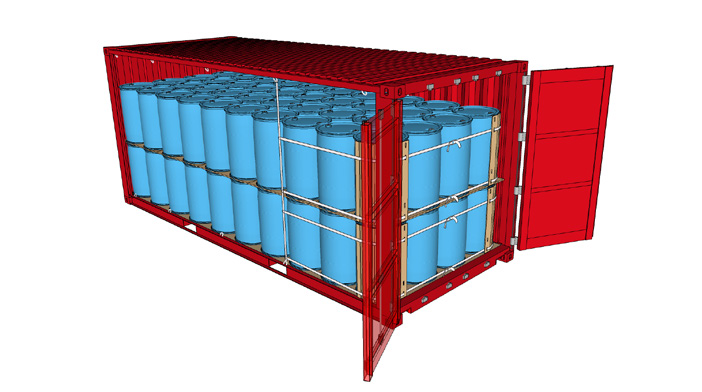

Cordstrap QuickLash 105.4 Plastic Drums

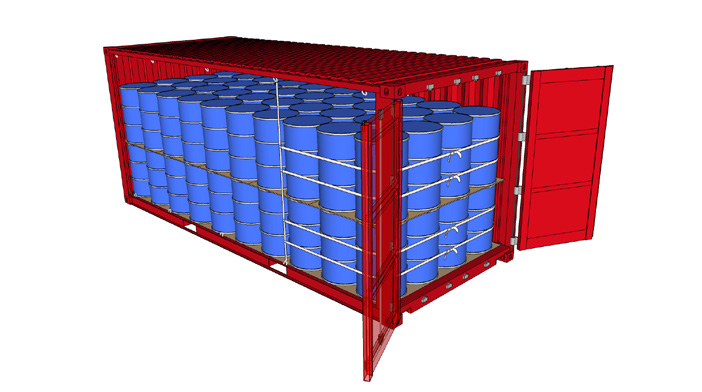

Cordstrap QuickLash 105.4 Steel Drums

Cordstrap QuickLash 105.4 Certificates

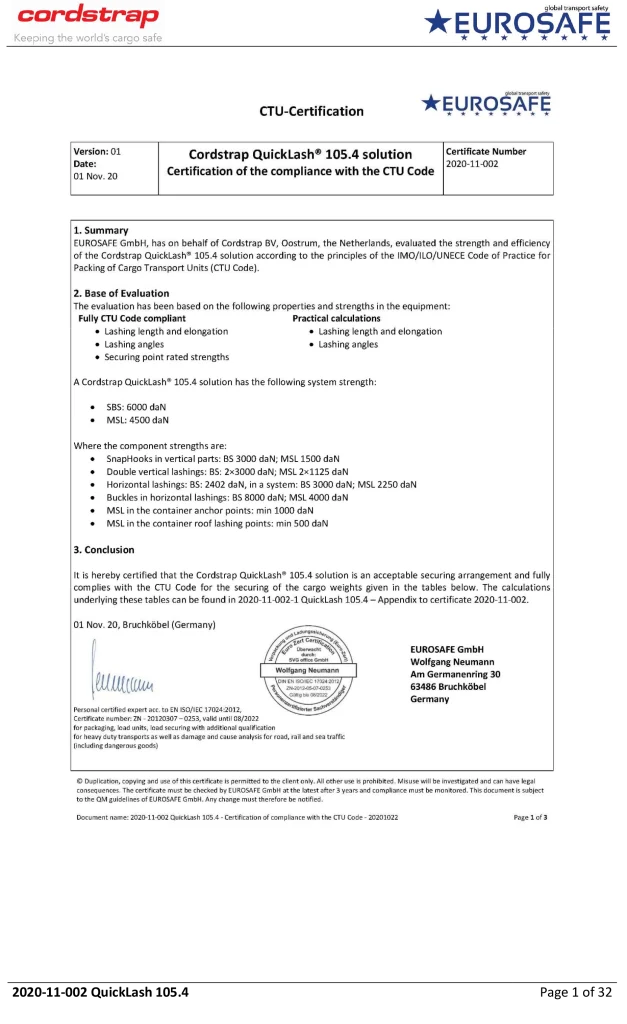

Cordstrap QuickLash 105.4 Eurosafe Certficate
Cordstrap QuickLash 105.4 MariTerm AB Certficate

Container Loading Instructions

Cordstrap AnchorLash Instructions

Cordstrap CornerLash Instructions

More information and purchasing

To purchase Cordstrap Strapping/Lashing products please contact your account manager or contact us today for expert advice and quotation.

Java, Kalimantan and surrounding areas
Andreas Tri J.
Email : andreastj@galangusaha.com
Phone : +628117770126

Java, Kalimantan and surrounding areas
Jonathan Nugroho
Email : jonathan@galangusaha.com
Phone : +628117750906

Batam and surrounding areas
Septyo Setiawan Junior
Email : tyojunior@galangusaha.com
Phone : +6281365295255

Lashing

Lashing and Buckle

Cordstrap Lashing Solutions Specifications

CW105 and HDB10N

Cordstrap Woven 105 – CW105
Length : 250 meter / Roll
Width : 32 mm // 1,1/4″
System Strength : 3.025 daN / 6.801 lbf

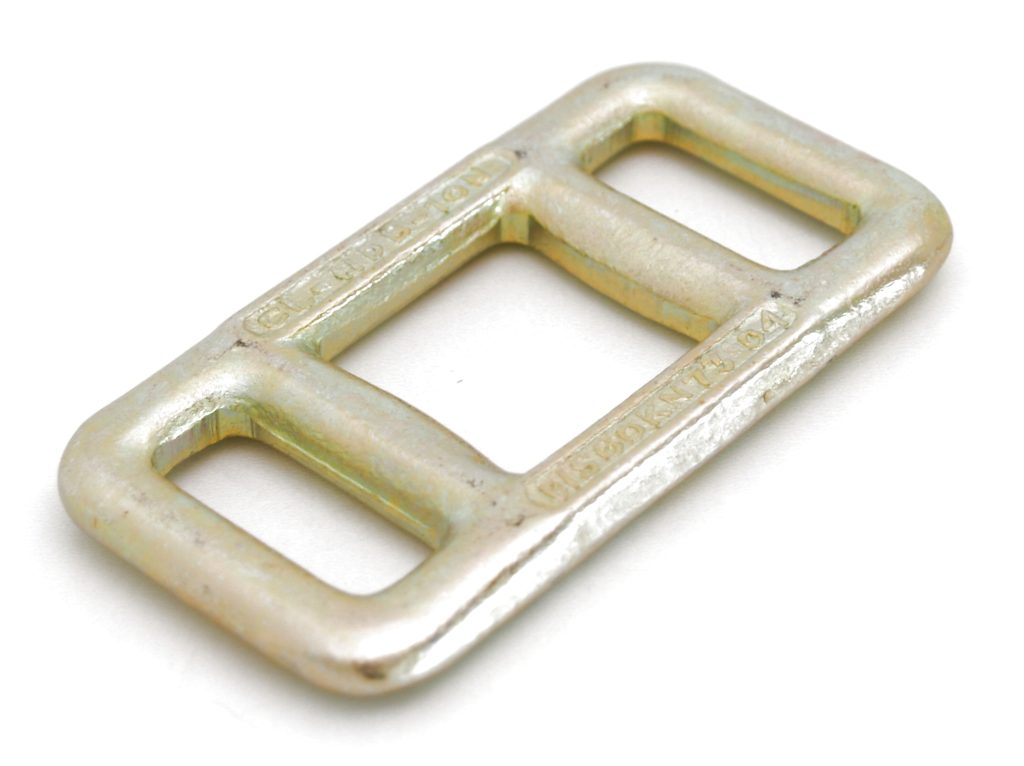

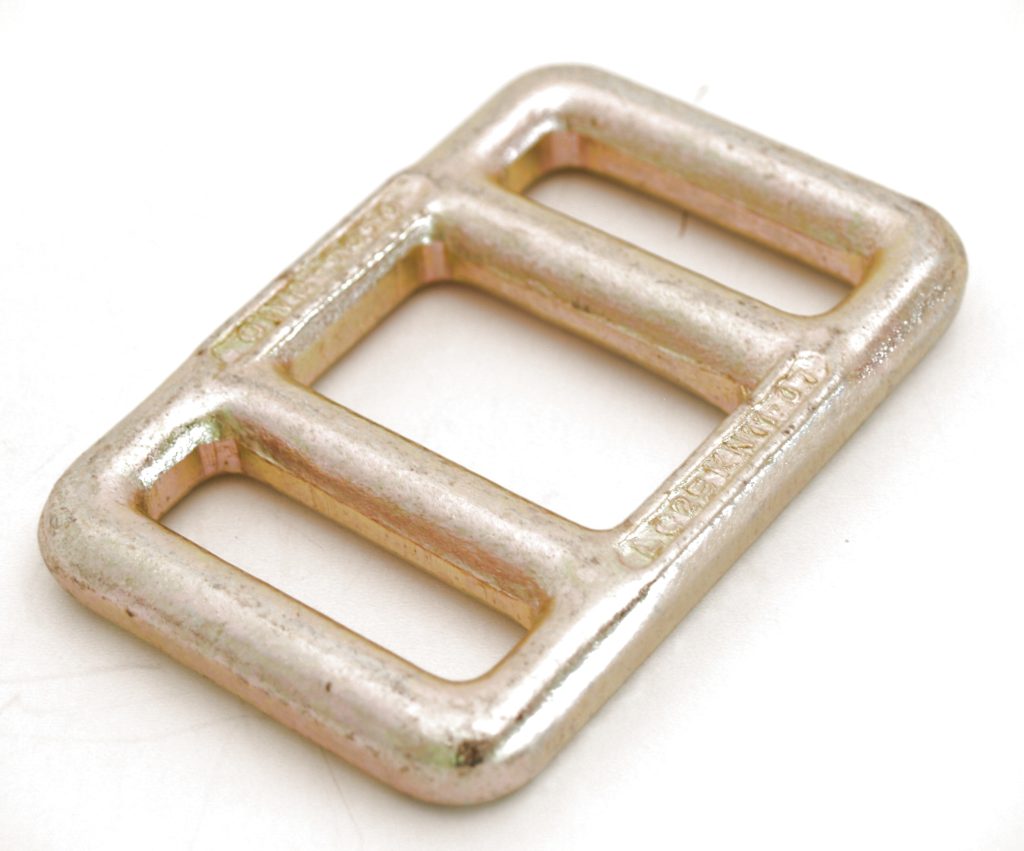

Cordstrap High Dynamic Buckle – HDB10N
Package : 50 pcs / Box
Width : 32 mm // 1,1/4″

CW200 and HDB12N

Cordstrap Woven 200 – CW200
Length : 200 meter / Roll
Width : 40 mm // 1,5/8″
System Strength : 9.060 daN / 20.367 lbf

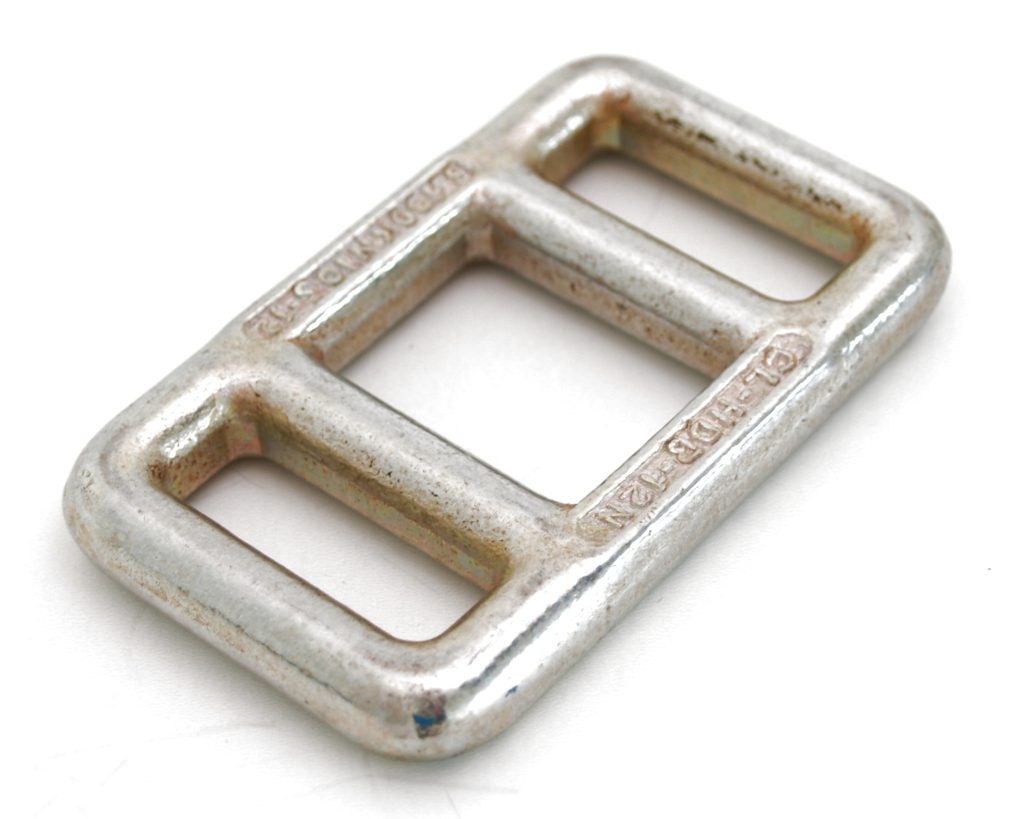

Cordstrap High Dynamic Buckle – HDB12N
Package : 30 pcs / Box
Width : 40 mm // 1,5/8″

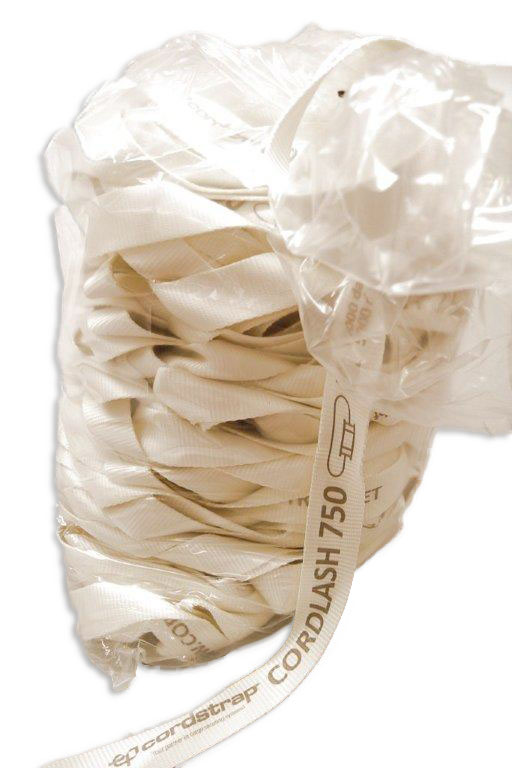

CW750 and DLB15

Cordstrap Woven 750 – CW750
Length : 150 meter / Roll
Width : 50 mm // 2″
System Strength : 13.204 daN / 29.685 lbf

Cordstrap Dynablock 15 – DLB15
Package : 20 pcs / Box
Width : 50 mm / 2″

CW1500 and DLB20

Cordstrap Woven 1500 – CW1500
Length : 100 meter / Roll
Width : 60 mm // 2,3/8″
System Strength : 23.889 daN / 53.705 lbf

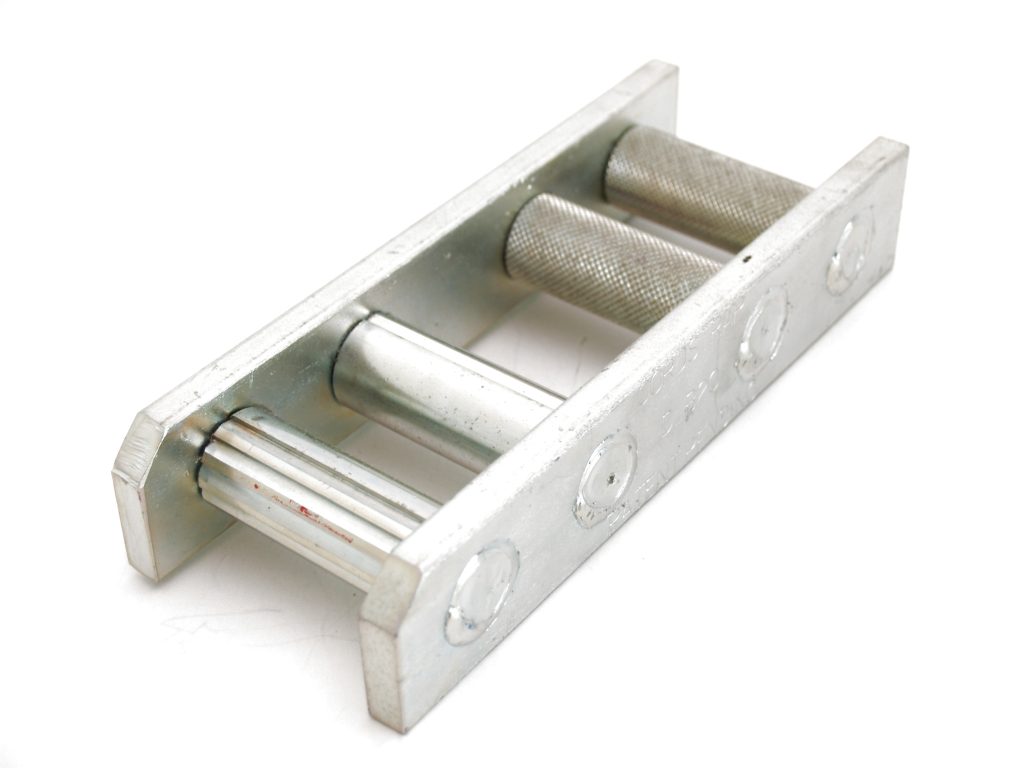

Cordstrap Dynablock 20 – DLB20
Package : 6 pcs / Box
Width : 60 mm // 2,3/8″

Lashing Tools and Accessories

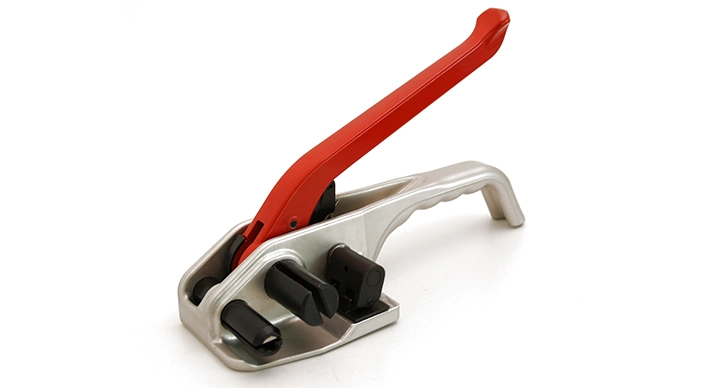

Tensioner CT-40

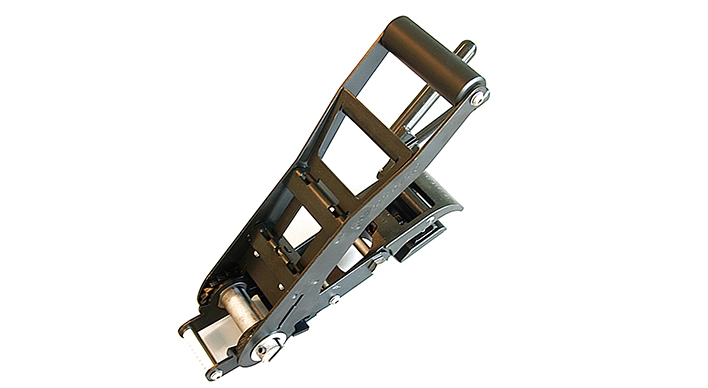

Tensioner CRT-50

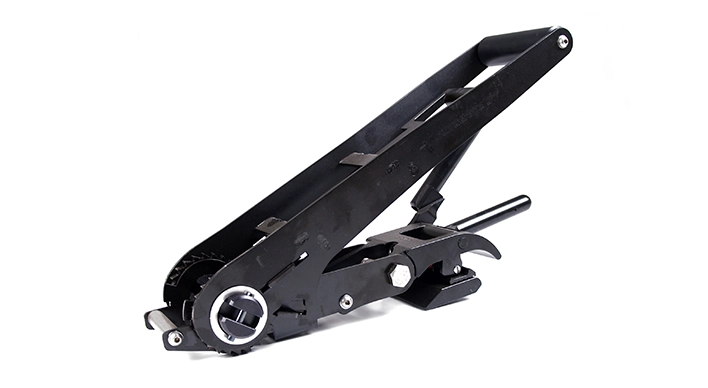

Tensioner CRT-60
Tensioner CBT-35

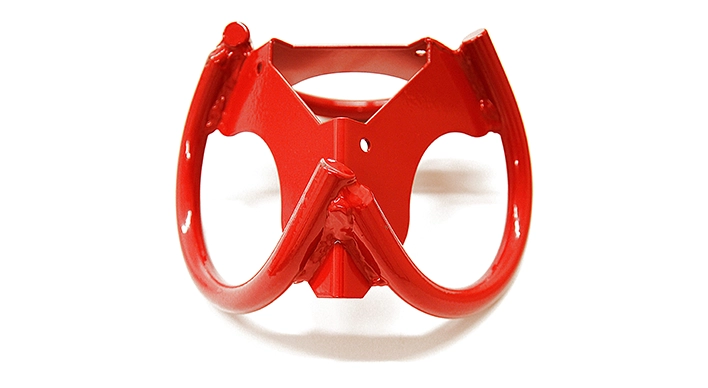

Corner Lashing Plates

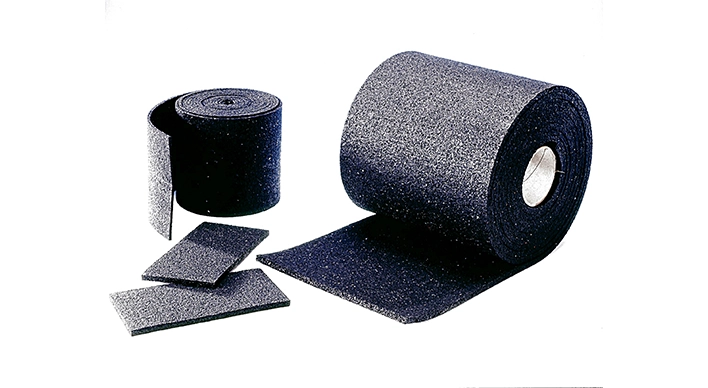

Anti-slip Mats

More information and purchasing

To purchase Cordstrap Strapping/Lashing products please contact your account manager or contact us today for expert advice and quotation.

Java, Kalimantan and surrounding areas
Andreas Tri J.
Email : andreastj@galangusaha.com
Phone : +628117770126

Java, Kalimantan and surrounding areas
Jonathan Nugroho
Email : jonathan@galangusaha.com
Phone : +628117750906

Batam and surrounding areas
Septyo Setiawan Junior
Email : tyojunior@galangusaha.com
Phone : +6281365295255

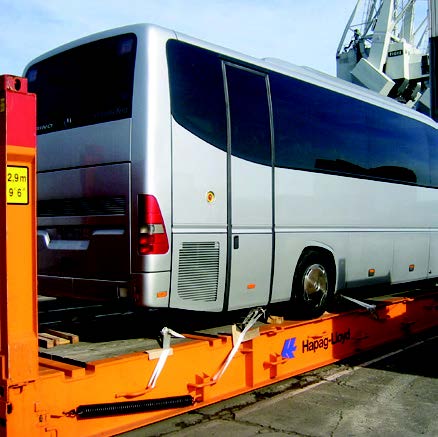

Flat Rack Securing

Flat Rack Solution

Valuable cargo can be exposed to extreme external influences on flat racks. Cordstrap’s dynamic cargo securing solutions protect against these and ensure cargo arrives at its destination without damage.

Cordstrap’s Flat Rack Securing Solutions are:

  • Easy, fast and safe to apply
  • Highly shock-absorbent
  • Tension retentive
  • Certified and approved by Germanischer Lloyd
  • Inclusive of onsite staff training

Applications

Bundling and Palletizing

Ship Securing

Containerization

Cordstrap Strapping

Cordstrap Strapping

Cordstrap’s GL certified composite polyester strapping provides a high quality, reliable and strong solution to securing products of all shapes and sizes for transportation, however heavy, fragile or expensive they may be.

A combination of application expertise and market leading cargo security knowledge allows Cordstrap’s experts to demonstrate how best to apply our large range of strapping solutions to your specific cargo securing requirements in the most timely and reliable manner.

Benefits

Strong
Cordstrap composite polyester strap, together with a high quality galvanized steel buckle, provides optimal strength in all cargo securing applications and offer excellent performance even under extreme temperatures and circumstances.

Reliable
The combination of Cordstrap straps and buckles provides the most consistent and reliable closing method for securing products, providing true peace of mind for sender and receiver.

Safe
Made of non-abrasive material, composite strapping is safe and easy to use. It will not damage products in transit and is safe to apply and remove.

Features

  • High securing strength – up to 2600 daN / 5850 lbf
  • Extremely high strap and buckle joint efficiency
  • Comprehensive range of manual, battery operated and pneumatic tensioners available
  • Wide range of accessories to quarantee the best solution for every application
  • All Cordstrap Composite Strapping solutions are witness tested BV Germanisher Llovd

Product Specification :

Cordstrap Composite Strapping & Buckle

Cordstrap Corded Polyester Strapping – CC50
– Width : 16 mm
– System Strength : 730 daN / 1.641 lbf
– Length : 850 meter / Roll		Cordstrap Galvanized Steel Buckle – CB5
– Width : 16 mm
– Package : 1.000 pcs / Box
Cordstrap Corded Polyester Strapping – CC60
– Width : 19 mm
– System Strength : 810 daN / 1.821 lbf
– Length : 600 meter / Roll		Cordstrap Galvanized Steel Buckle – CB6
– Width : 19 mm
– Package : 500 pcs / Box
Cordstrap Corded Polyester Strapping – CC85
– Width : 25 mm
– System Strength : 1.469 daN / 3.302 lbf
– Length : 500 meter / Roll		Cordstrap Galvanized Steel Buckle – CB8
– Width : 25 mm
– Package : 250 pcs / Box
Cordstrap Corded Polyester Strapping – CC105
– Width : 32 mm
– System Strength : 2.568 daN / 5.773 lbf
– Length : 230 meter / Roll		Cordstrap Galvanized Steel Buckle – CB10
– Width : 32 mm
– Package : 125 pcs / Box

All Cordstrap composite polyester solutions have been witness tested by Germanischer Lloyd
Temperature Range Standard, Medium and Heavy Solutions: 5°C – 80°C / 41°F – 176°F
Temperature Range Medium and Heavy UltraFlex (UF) Solutions: -20°C – 30°C / -4°F – 86°F

Compliance, Approval & Certification

More information and purchasing

To purchase Cordstrap Strapping/Lashing products please contact your account manager or contact us today for expert advice and quotation.

Java, Kalimantan and surrounding areas
Andreas Tri J.
Email : andreastj@galangusaha.com
Phone : +628117770126

Java, Kalimantan and surrounding areas
Jonathan Nugroho
Email : jonathan@galangusaha.com
Phone : +628117750906

Batam and surrounding areas
Septyo Setiawan Junior
Email : tyojunior@galangusaha.com
Phone : +6281365295255
